Rear Oil Seal and Flywheel Inspection: Flywheel

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

If ring gear is damaged, cracked or worn, replace flywheel.
If the surface contacting clutch disc is damaged, or excessively worn, replace flywheel.
Check flywheel for face runout with a dial gauge. If runout exceeds its limit, replace flywheel.
Flywheel runout

Limit: 0.2 mm (0.0078 in.)

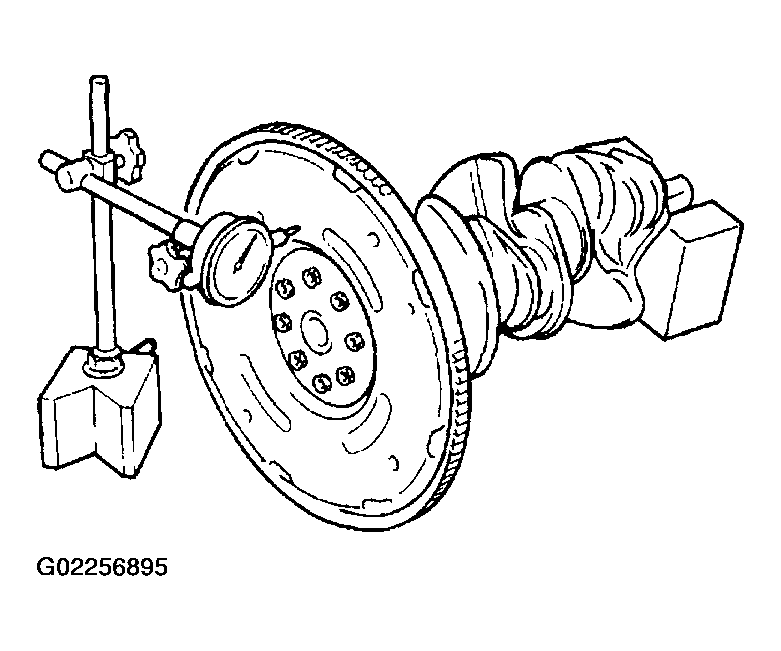

Fig 1: Checking Flywheel For Face Runout With Dial Gauge
Courtesy of SUZUKI OF AMERICA CORP.
