RH (No. 2) Bank 2nd Timing Chain and Chain Tensioner Removal

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

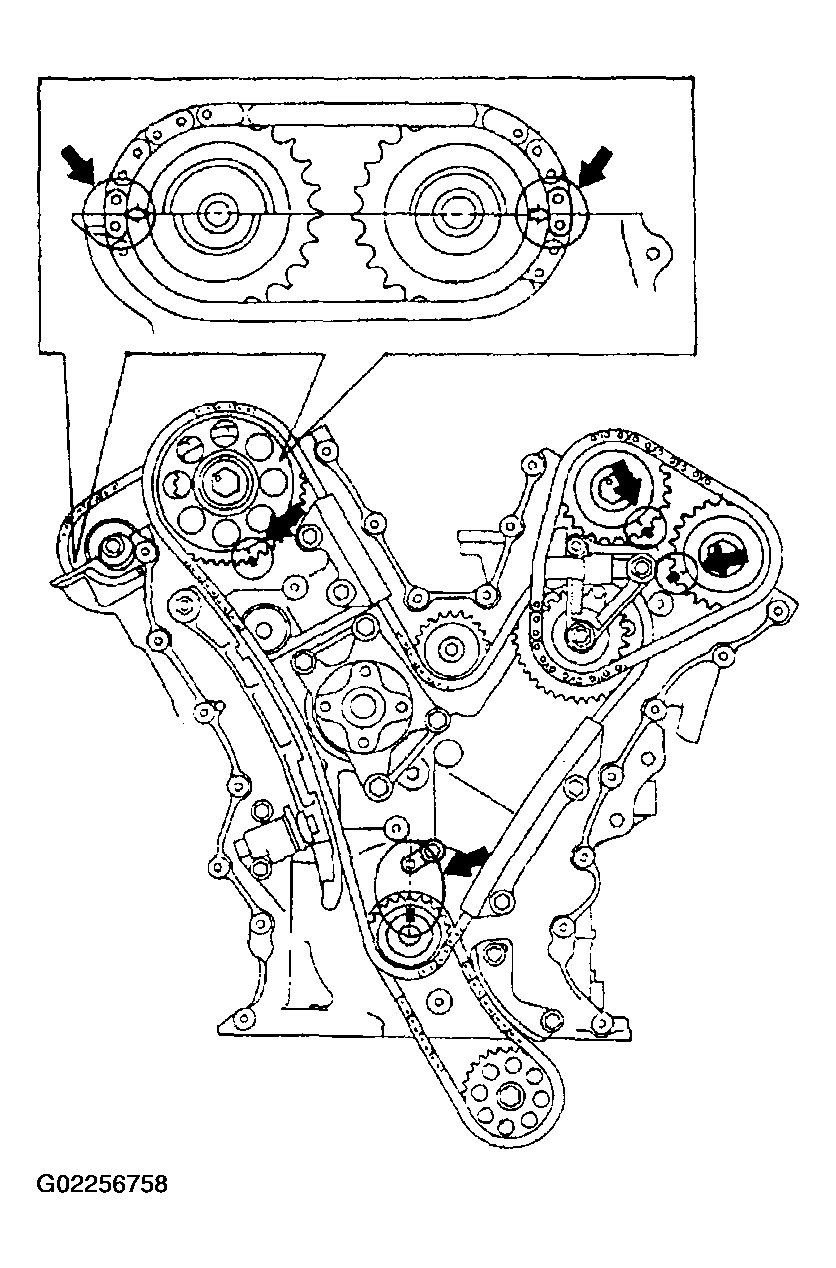

For reinstallation of timing chain, align 12 timing marks as shown in figure by turning crankshaft.

Fig 1: Installing Timing Chain Aligning Timing Marks
Courtesy of SUZUKI OF AMERICA CORP.
Remove LH bank 2nd timing chain. Refer to "LH (NO. 1) BANK 2ND TIMING CHAIN AND CHAIN TENSIONER REMOVAL ".
Remove 1st timing chain. Refer to "1ST TIMING CHAIN AND CHAIN TENSIONER REMOVAL ".
Remove timing chain guide No. 3 referring to "RH (NO. 2) BANK 2ND TIMING CHAIN AND CHAIN TENSIONER COMPONENTS ".

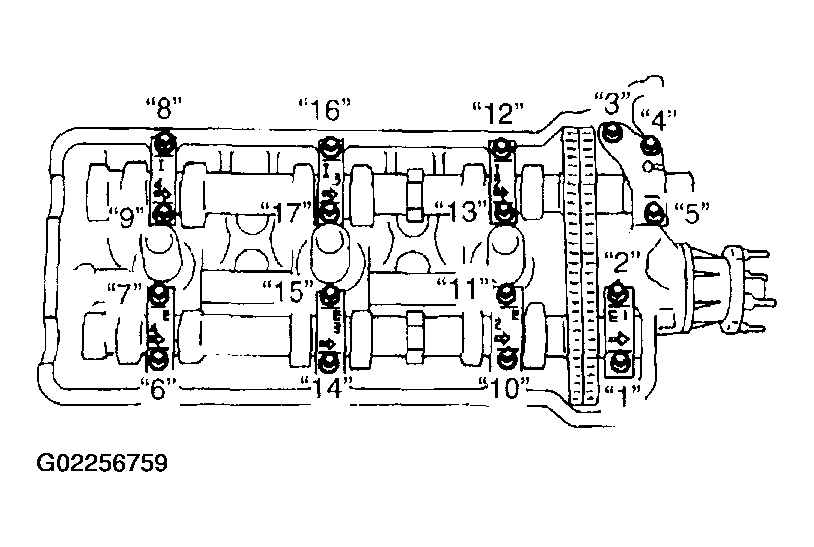

Loosen camshaft housing bolts in such order ("1" - "17") as indicated in the figure and remove them.
Remove camshaft housings.

Fig 2: Loosening Camshaft Housing Bolts In Sequence
Courtesy of SUZUKI OF AMERICA CORP.
Remove RH bank intake camshaft, RH bank exhaust camshaft, and RH bank 2nd timing chain as a set referring to "RH (NO. 2) BANK 2ND TIMING CHAIN AND CHAIN TENSIONER COMPONENTS ".
Remove timing chain tensioner adjuster No. 2, referring to "RH (NO. 2) BANK 2ND TIMING CHAIN AND CHAIN TENSIONER COMPONENTS ".
