Undersize main bearing thickness

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

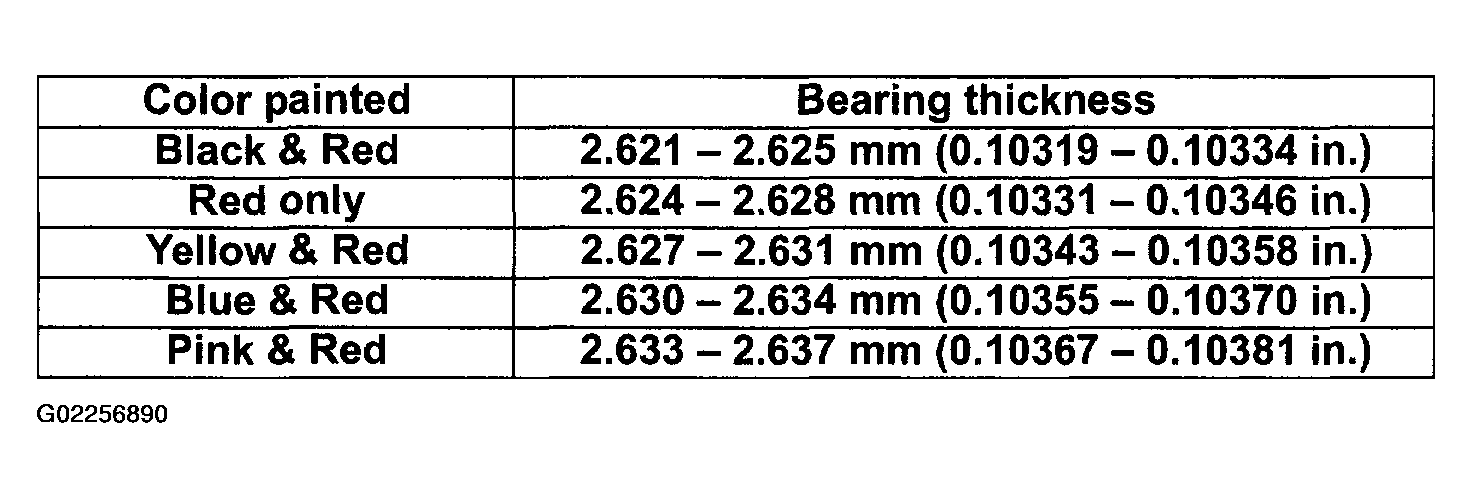

Fig 1: Undersize Main Bearing Thickness Specifications Chart

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Color Mark

Courtesy of SUZUKI OF AMERICA CORP.

Regrind journal to the following finished diameter.
Finished journal diameter

64.732 - 64.750 mm (2.5485 - 2.5492 in.)
Using micrometer, measure reground journal diameter.
Measurement should be taken in two directions perpendicular to each other in order to check for out-of-round.

Fig 3: Measuring Reground Journal Diameter Using Micrometer
Courtesy of SUZUKI OF AMERICA CORP.
Using journal diameter measured above and alphabets stamped on lower crankcase, select an undersize bearing by referring to table given in the following.
Check bearing clearance with newly selected undersize bearing.
