Undersize bearing specification

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

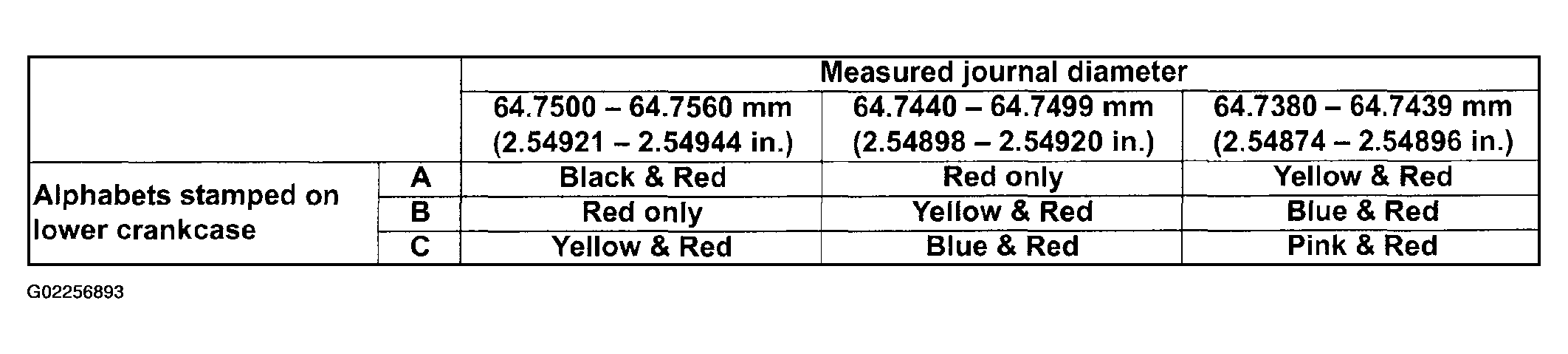

Fig 1: Undersize Bearing Specifications Chart
G02256893Courtesy of SUZUKI OF AMERICA CORP.
