LH (No. 1) Bank 2nd Timing Chain and Chain Tensioner Installation

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check timing mark on crankshaft as shown in the figure.

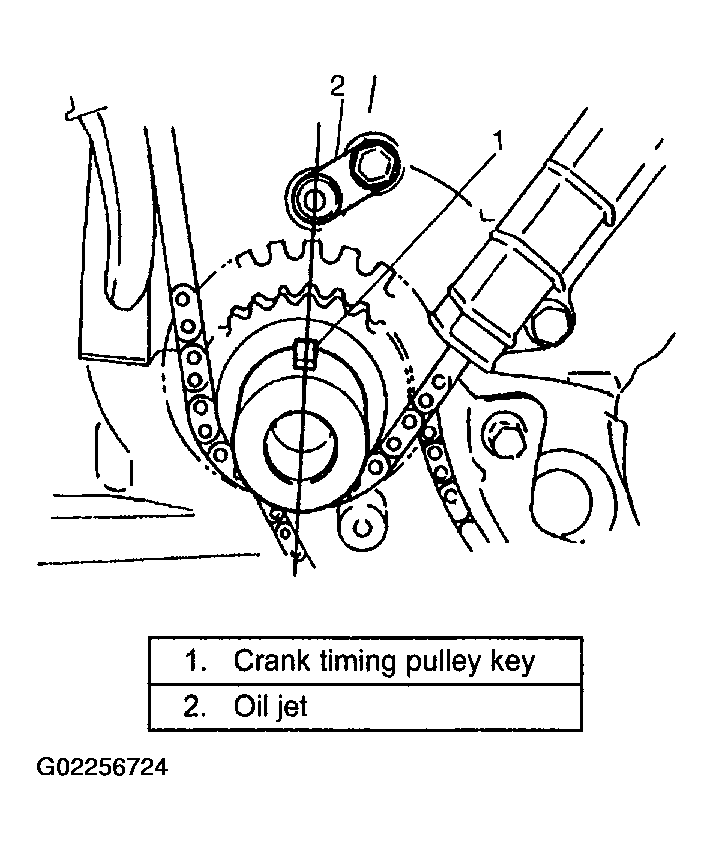

Fig 1: Checking Timing Mark On Crankshaft
Courtesy of SUZUKI OF AMERICA CORP.
Check timing mark on idler sprocket No. 2 (1) as shown in the figure.

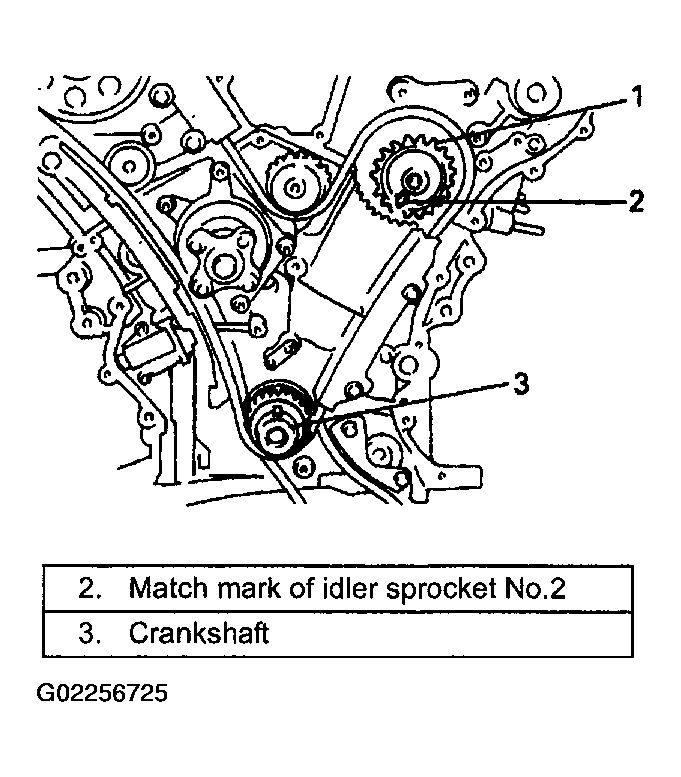

Fig 2: Checking Timing Mark On Idler Sprocket No. 2
Courtesy of SUZUKI OF AMERICA CORP.
Install timing chain guide No. 4 (1).
Tightening torque

Timing chain guide No. 4 bolt (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)

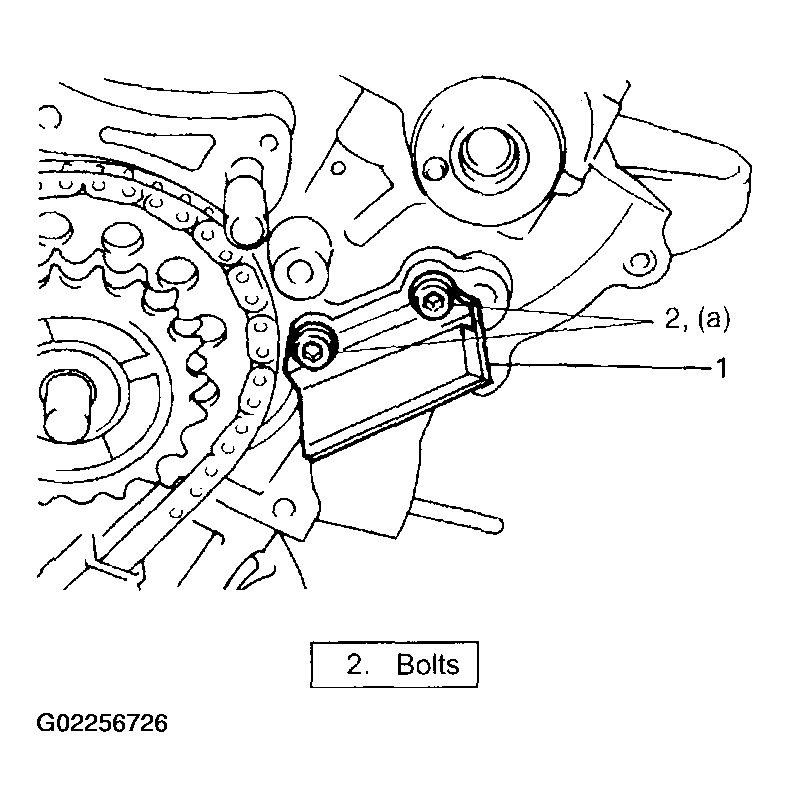

Fig 3: Installing Timing Chain Guide No. 4
Courtesy of SUZUKI OF AMERICA CORP.
Check that knock-pins of intake and exhaust camshafts are aligned with match marks on cylinder head as shown in the figure.

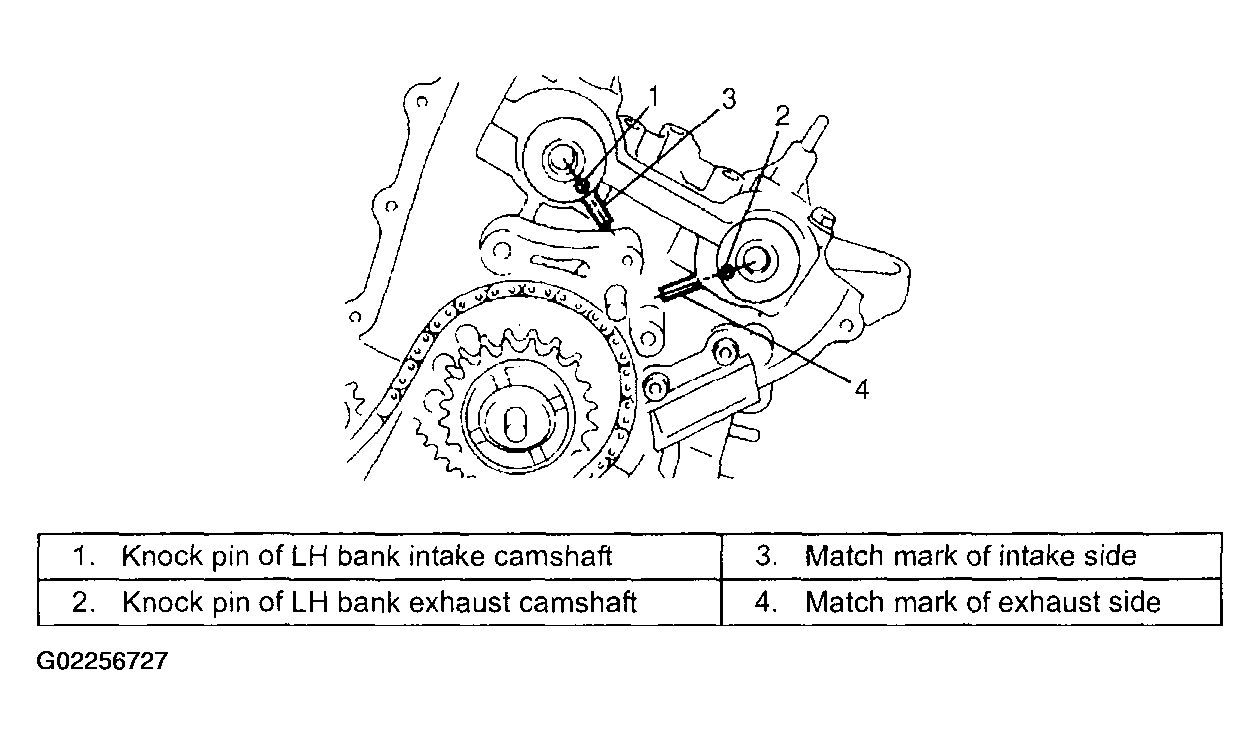

Fig 4: Checking Knock-Pins Of Intake & Exhaust Camshafts Are Aligned
Courtesy of SUZUKI OF AMERICA CORP.
Install by aligning match marks (2) on yellow plate (1) of LH bank 2nd timing chain and idler sprocket No. 2.

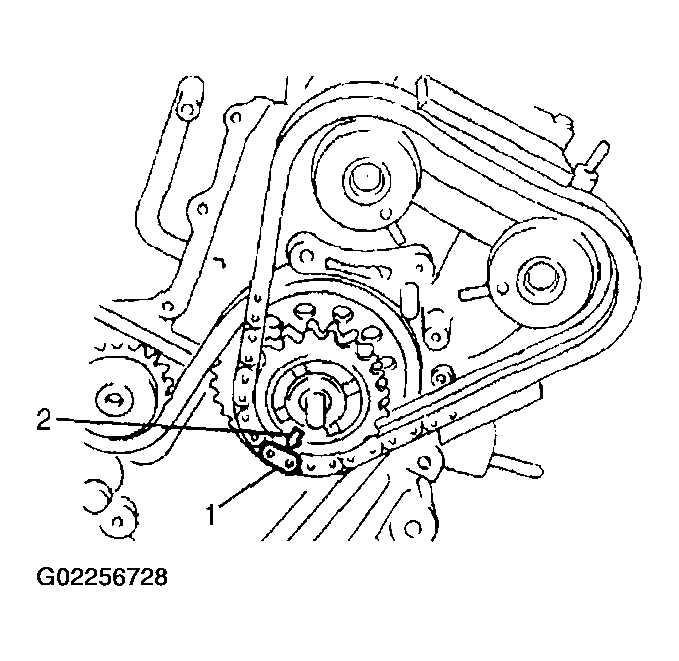

Fig 5: Aligning Match Marks On Yellow Plate
Courtesy of SUZUKI OF AMERICA CORP.
Install sprockets to intake and exhaust camshafts by aligning silver plate (1) of LH bank 2nd timing chain, match marks on intake sprocket and exhaust sprocket respectively.
CAUTION: Do not turn camshaft more than necessary. If turned excessively, valve and piston may get damaged.
Install LH bank intake and exhaust camshaft timing sprockets.
To install it, fit a spanner to hexagonal part at the center of camshaft to hold stationary.

Tightening torque

Camshaft timing sprocket bolt (b): 80 N.m (8.0 kg-m, 58.0 lb-ft)

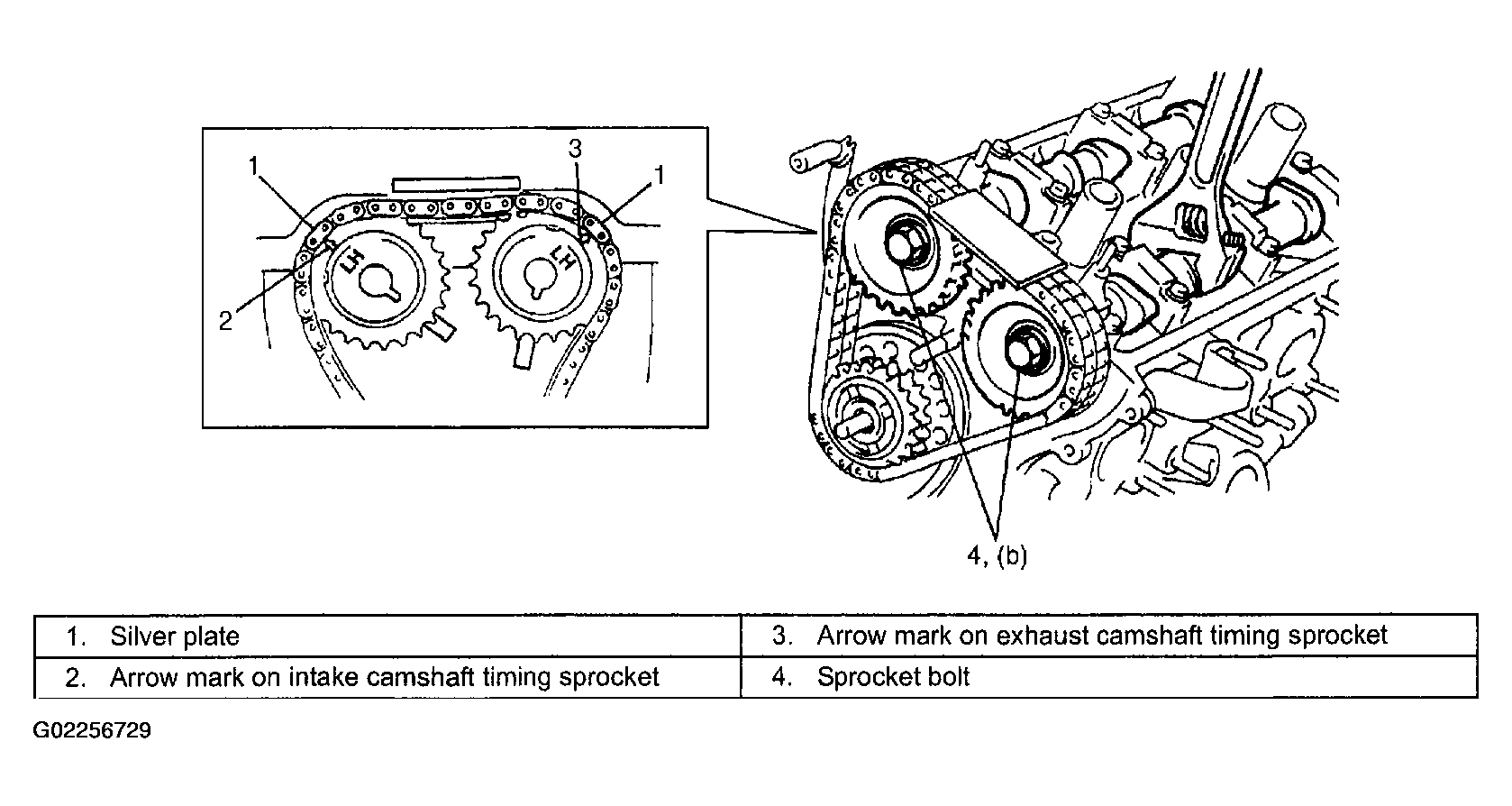

Fig 6: Installing LH Bank Intake & Exhaust Camshaft Timing Sprockets
Courtesy of SUZUKI OF AMERICA CORP.
With latch (2) of tensioner adjuster No. 3 returned and plunger (1) pushed back into body, insert stopper (pin) (4) into set hole (3).
After inserting it, check to make sure that plunger will not come out.

Fig 7: Inserting Stopper Pin Into Set Hole
Courtesy of SUZUKI OF AMERICA CORP.

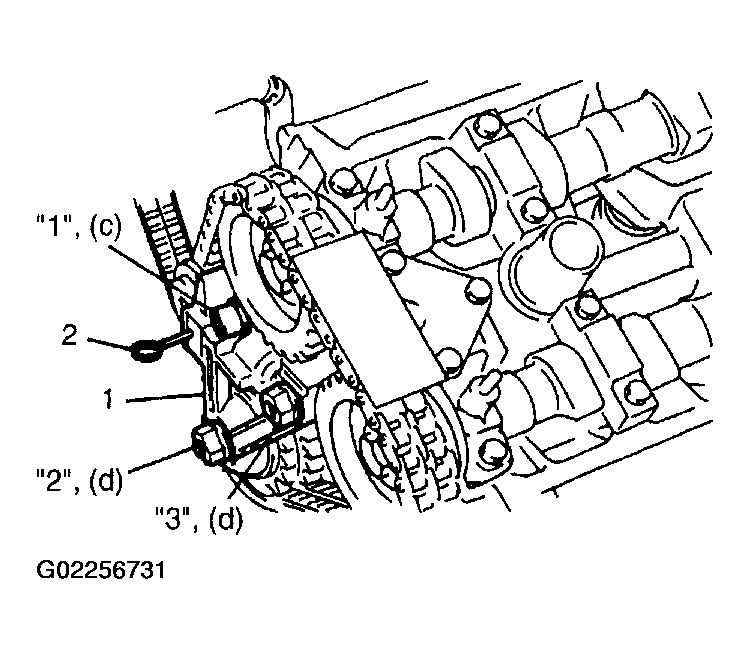

Install timing chain tensioner adjuster No. 3 (1).
Tightening torque

Timing chain tensioner adjuster No. 3 bolt (c): Tighten 11 N.m (1.1 kg-m, 8.0 lb-ft) by the specified procedure

Timing chain tensioner adjuster No. 3 nut (d): Tighten 55 N.m (5.5 kg-m, 40.0 lb-ft) by the specified procedure

Tightening order

"1" --> "2" --> "3"
Pull out stopper (pin) (2) from set hole.

Fig 8: Pulling Out Stopper Pin From Set Hole
Courtesy of SUZUKI OF AMERICA CORP.
Turn crankshaft two rotations clockwise then align timing mark on crankshaft and timing mark on cylinder block as shown in the figure.
Check each other timing marks that align them shown in the figure.

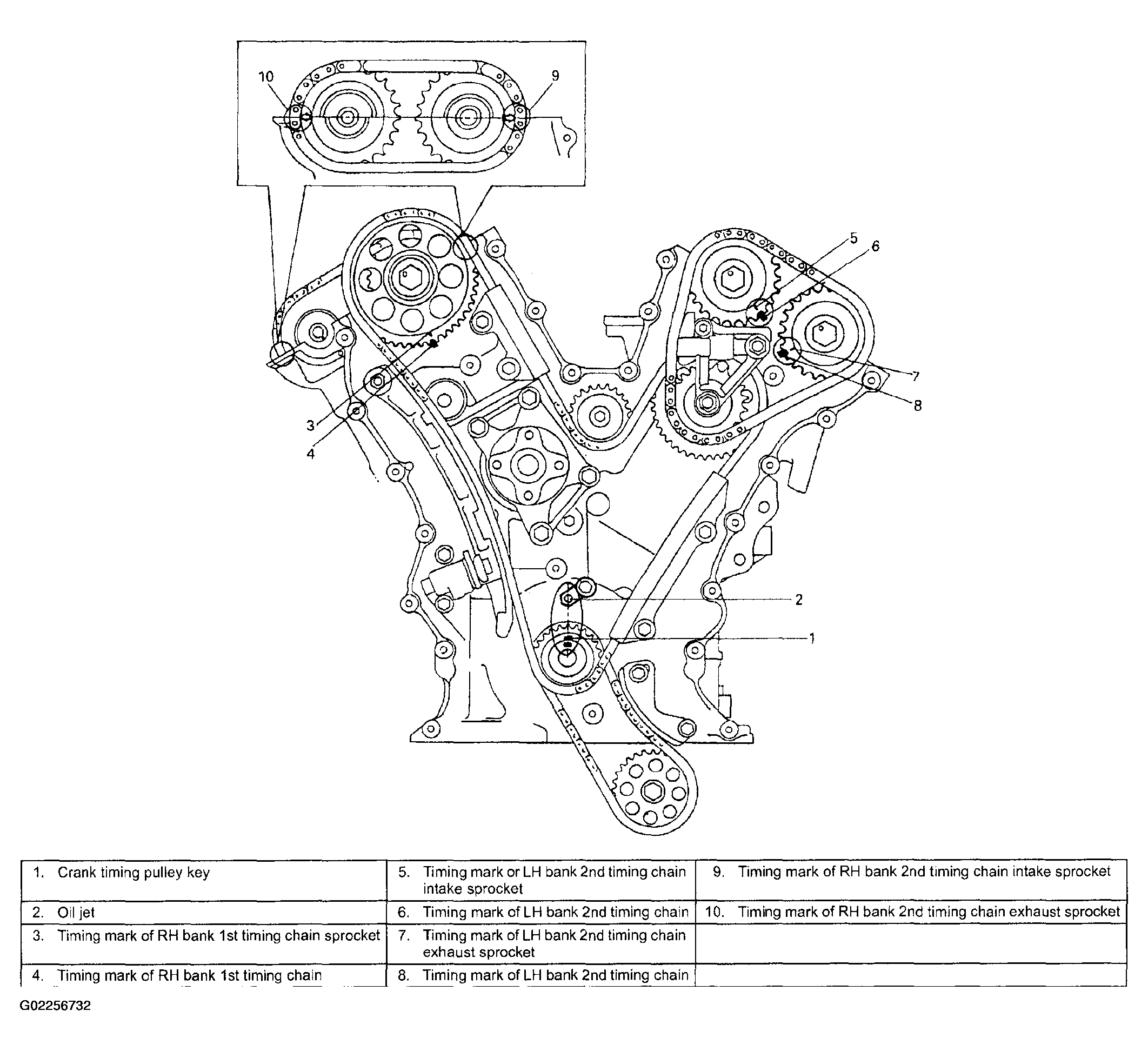

Fig 9: Checking Other Timing Marks Aligning Them
Courtesy of SUZUKI OF AMERICA CORP.
Apply oil to timing chains, tensioner adjusters sprockets, and guides.
Install timing chain cover referring to "TIMING CHAIN COVER REMOVAL AND INSTALLATION ".
Install oil pan referring to "OIL PAN AND OIL PUMP STRAINER REMOVAL AND INSTALLATION ".
Install front differential referring to "FRONT DIFFERENTIAL DISMOUNTING AND REMOUNTING ".
Install P/S system referring to "POWER STEERING PUMP REMOVAL AND INSTALLATION ".
Install cooling system referring to "COOLING FAN AND FAN CLUTCH REMOVAL AND INSTALLATION ".
Install intake manifold with throttle body referring to "THROTTLE BODY AND INTAKE MANIFOLD INSTALLATION: ".
Refill cooling system, P/S system, front differential and engine with each oil / fluid.
Check wheel alignment referring to "WHEEL ALIGNMENT SPECIFICATIONS ".
Verify that there is no fuel leakage, water leakage and oil leakage at each connection.
