Tensioner Adjuster No. 3

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

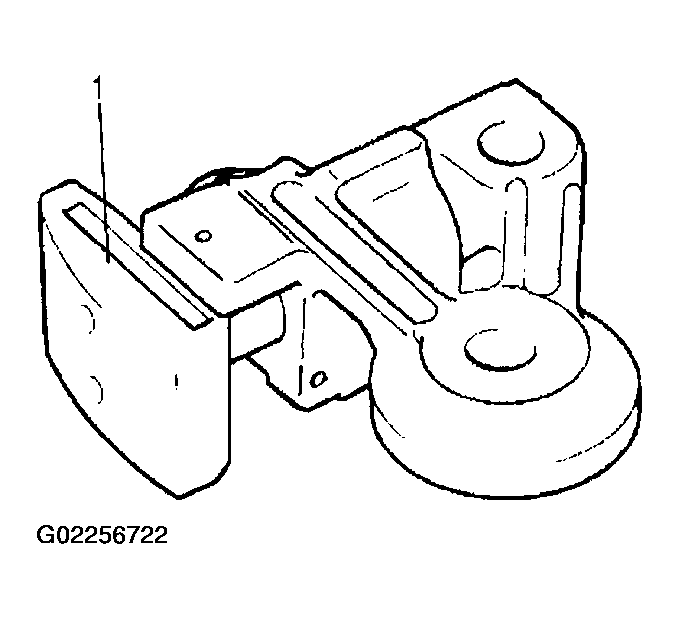

Check shoe (1) for wear or damage.

Fig 1: Checking Shoe For Wear Or Damage
Courtesy of SUZUKI OF AMERICA CORP.

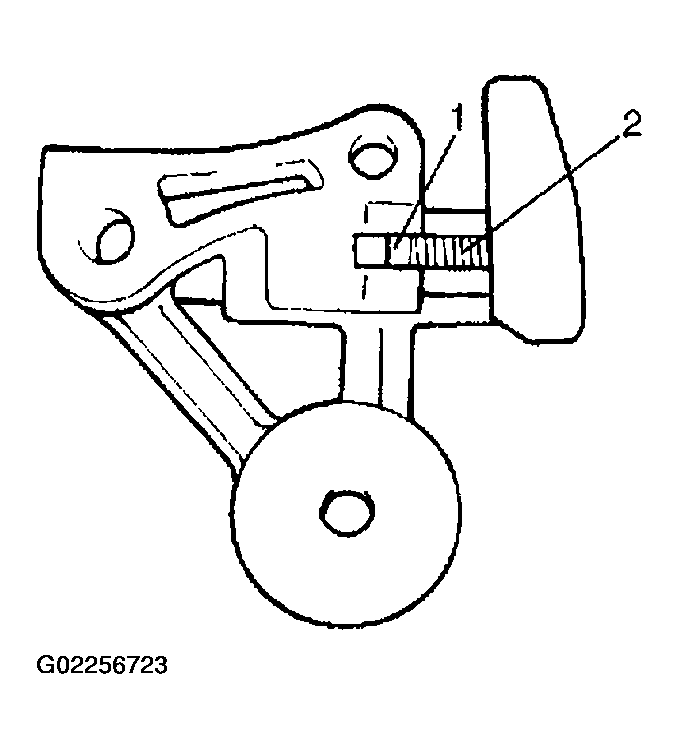

Check that latch (1) and tooth surface (2) are free from damage and latch functions properly.

Fig 2: Checking Latch & Tooth Surface For Damage
Courtesy of SUZUKI OF AMERICA CORP.
