Piston ring end gap

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

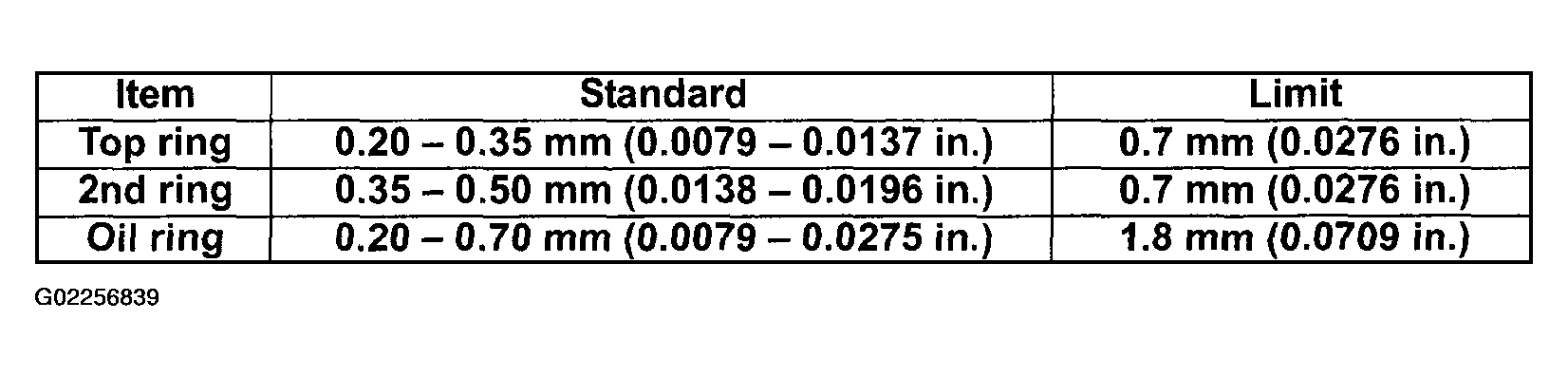

Fig 1: Piston Ring End Gap Specifications Chart
G02256839Courtesy of SUZUKI OF AMERICA CORP.

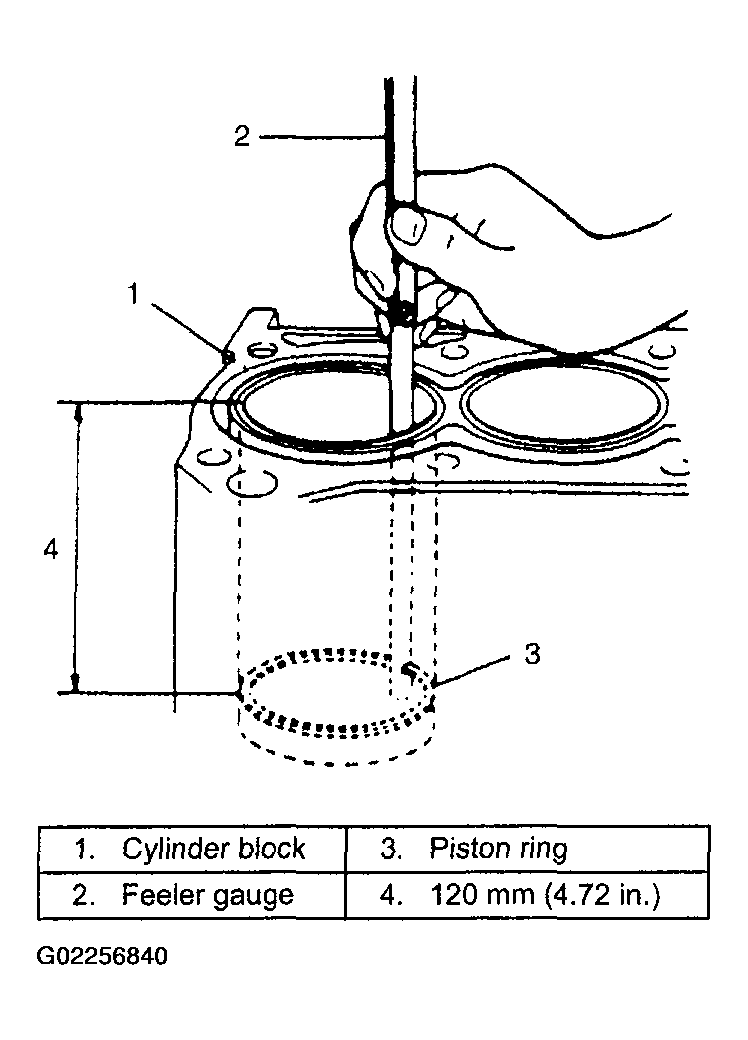

Fig 2: Measuring Piston Ring End Gap
G02256840Courtesy of SUZUKI OF AMERICA CORP.
