Out-of-Round and Taper (Uneven Wear) of Journals
WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
An unevenly worn crankshaft journal shows up as a difference in diameter at a cross section or along its length (or both). This difference, if any, is determined by taking micrometer readings. If any one of journals is badly damaged or if amount of uneven wear in the sense explained above exceeds its limit, regrind or replace crankshaft.

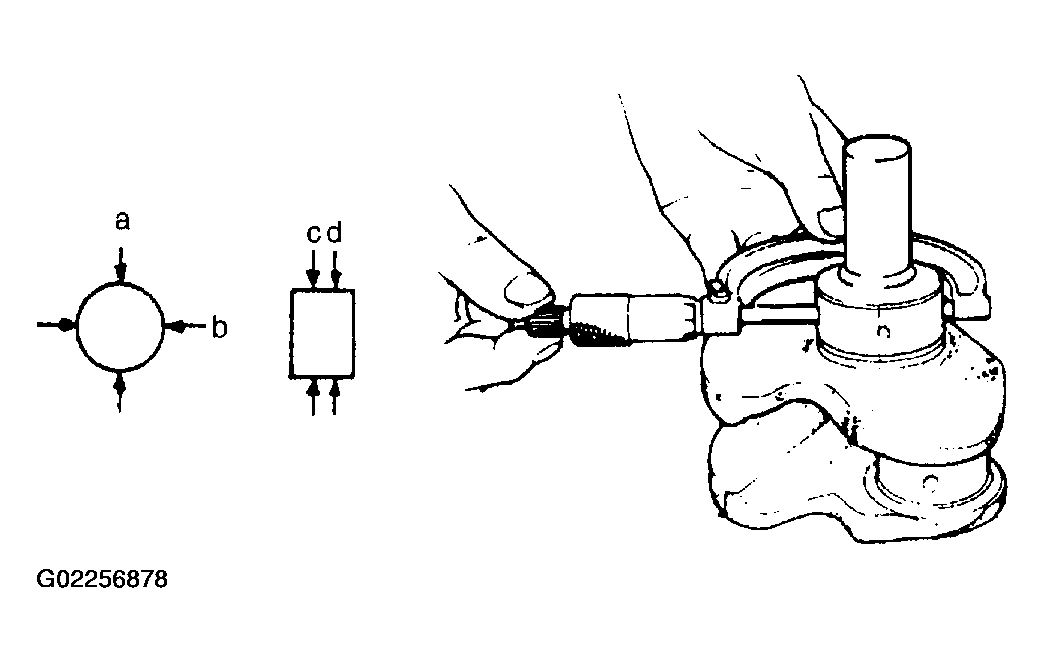

Crank journal out-of-round (a - b) and taper (c - d)
Limit: 0.01 mm (0.0004 in.)
