Cam Wear

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Using a micrometer, measure cam height. If measured height is below its limit, replace camshaft.

"a": Cam height

Standard (Intake): 39.445 - 39.605 mm (1.5530 - 1.5592 in.)

Standard (Exhaust): 39.428 - 39.588 mm (1.5523 - 1.5585 in.)

Limit: 39.400 mm (1.5512 in.)

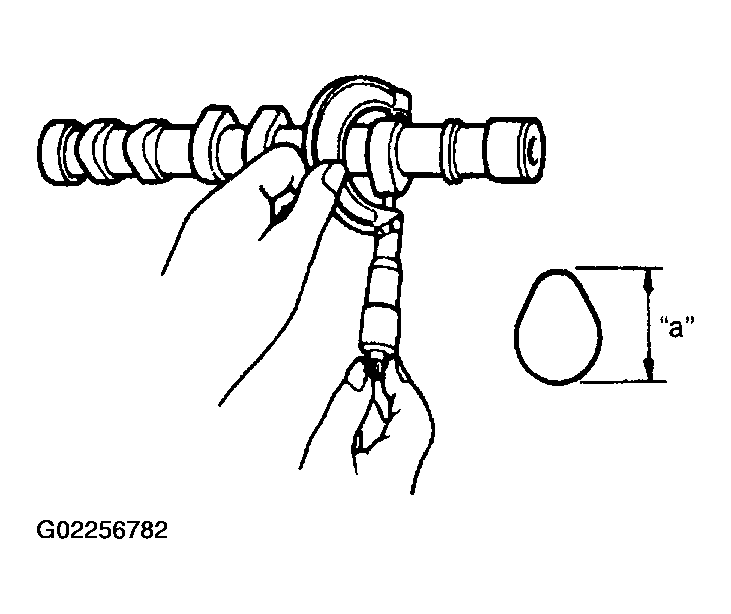

Fig 1: Measuring Cam Height Using Micrometer
G02256782Courtesy of SUZUKI OF AMERICA CORP.
