Air Cleaner Element Inspection and Cleaning: Cleaning

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

When cleaning element, blow off dust by blowing compressed air from air outlet side of element (i.e., the side facing up when installed in air cleaner case).

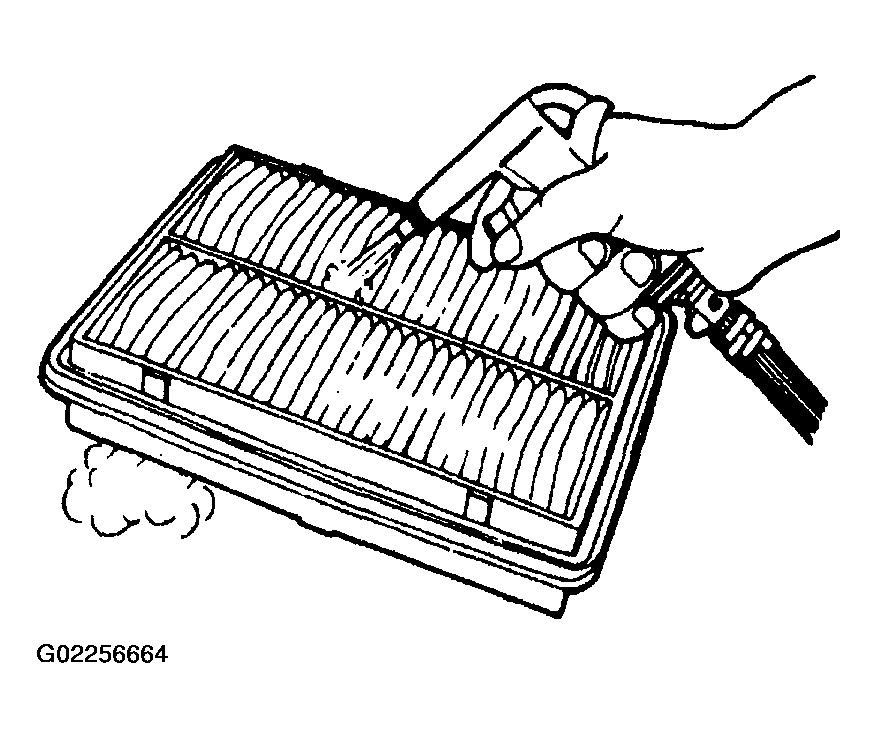

Fig 1: Cleaning Air Cleaner Element
G02256664Courtesy of SUZUKI OF AMERICA CORP.
