A/T Throttle Cable Adjustment (for A/T Vehicle)
WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Make sure that accelerator cable is adjusted as specified.

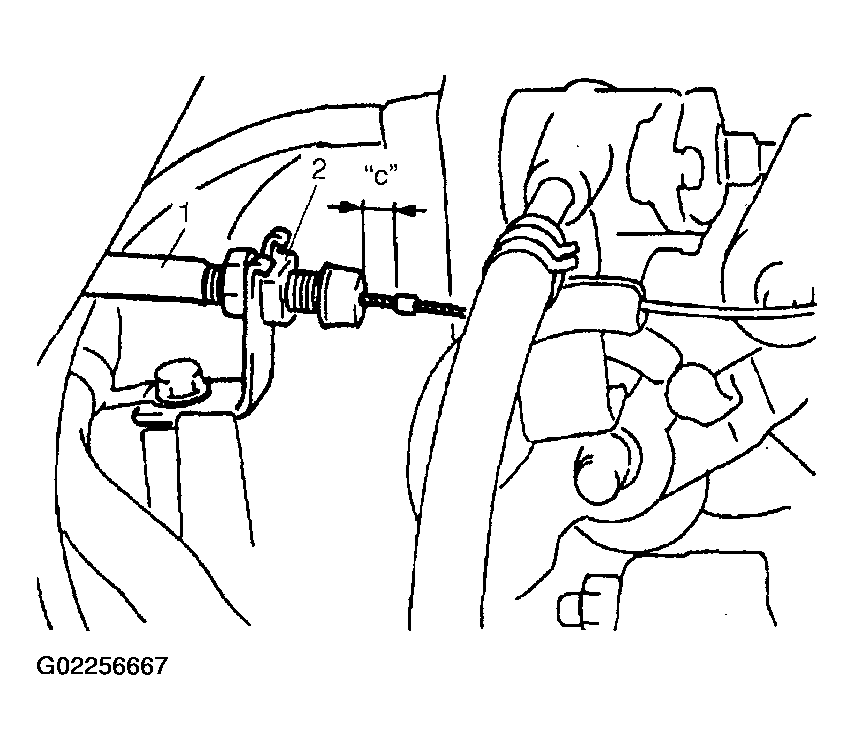

- With throttle valve closed, check clearance "c" which should be within the following specification. If it is out of specification, adjust A/T throttle cable (1) by turning cable adjusting nut (2).
A/T throttle cable adjustment clearance
"c": 0.8 - 1.5 mm (0.03 - 0.06 in.)
