Section 162 (Engine General Information & Diagnosis)
>>
Schematic and Routing Diagram
>>
Engine and Emission Control System Diagram
Engine and Emission Control System Diagram
WARNING:
This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

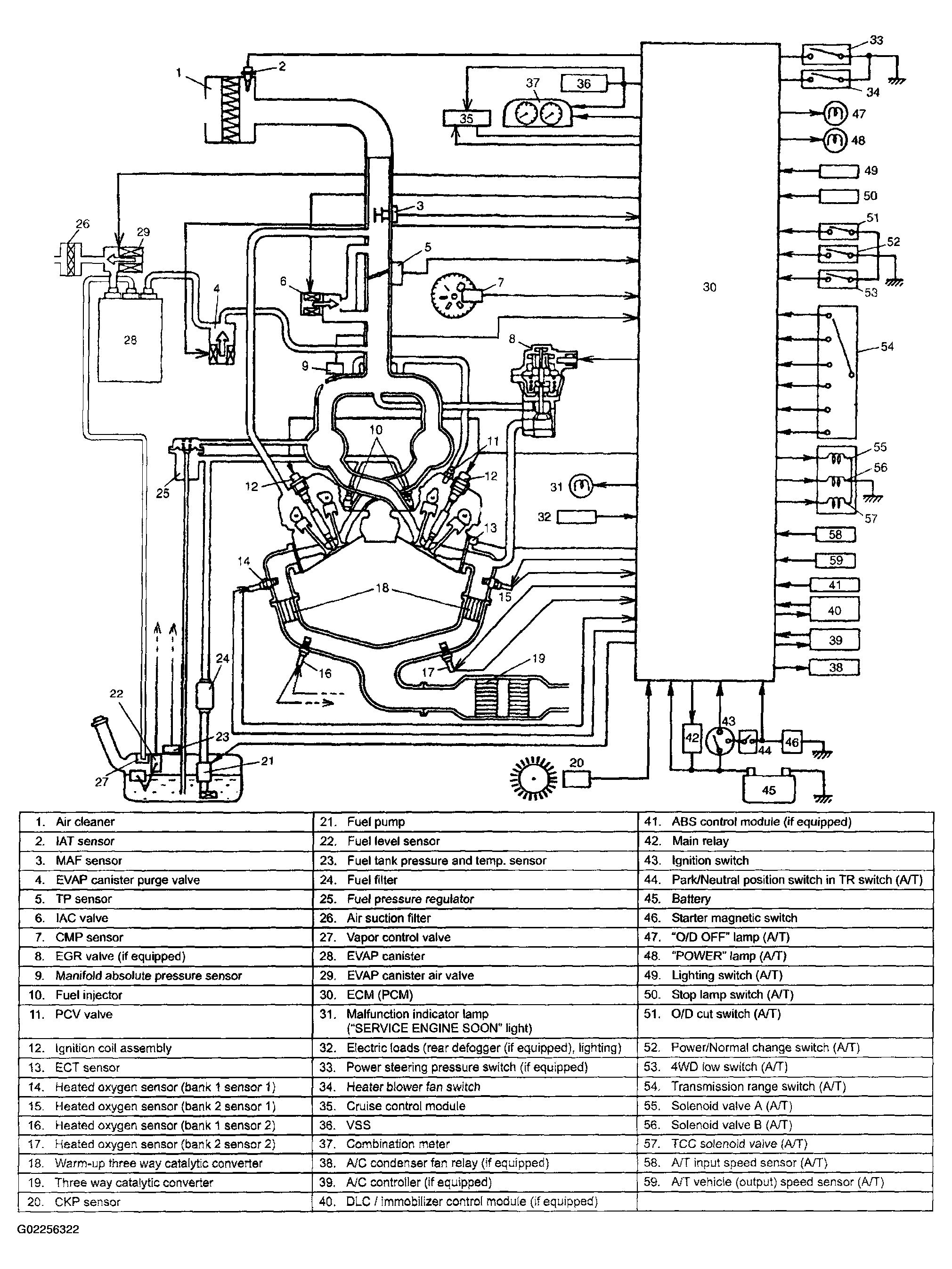

Fig 1: Engine & Emission Control System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
