MIL Remains ON after Engine Starts: Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

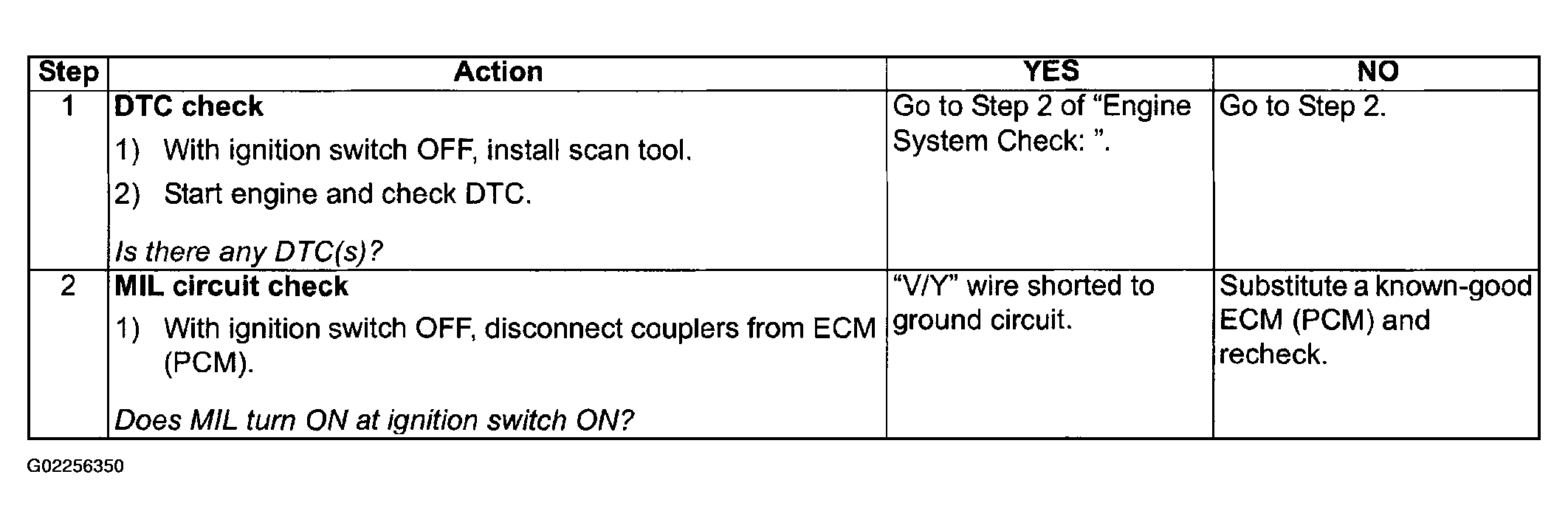

Fig 1: MIL Remains On After Engine Starts Troubleshooting Chart
G02256350Courtesy of SUZUKI OF AMERICA CORP.
