MIL Does Not Light at Ignition Switch ON and Engine Does Not Start though It Is Cranked Up: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

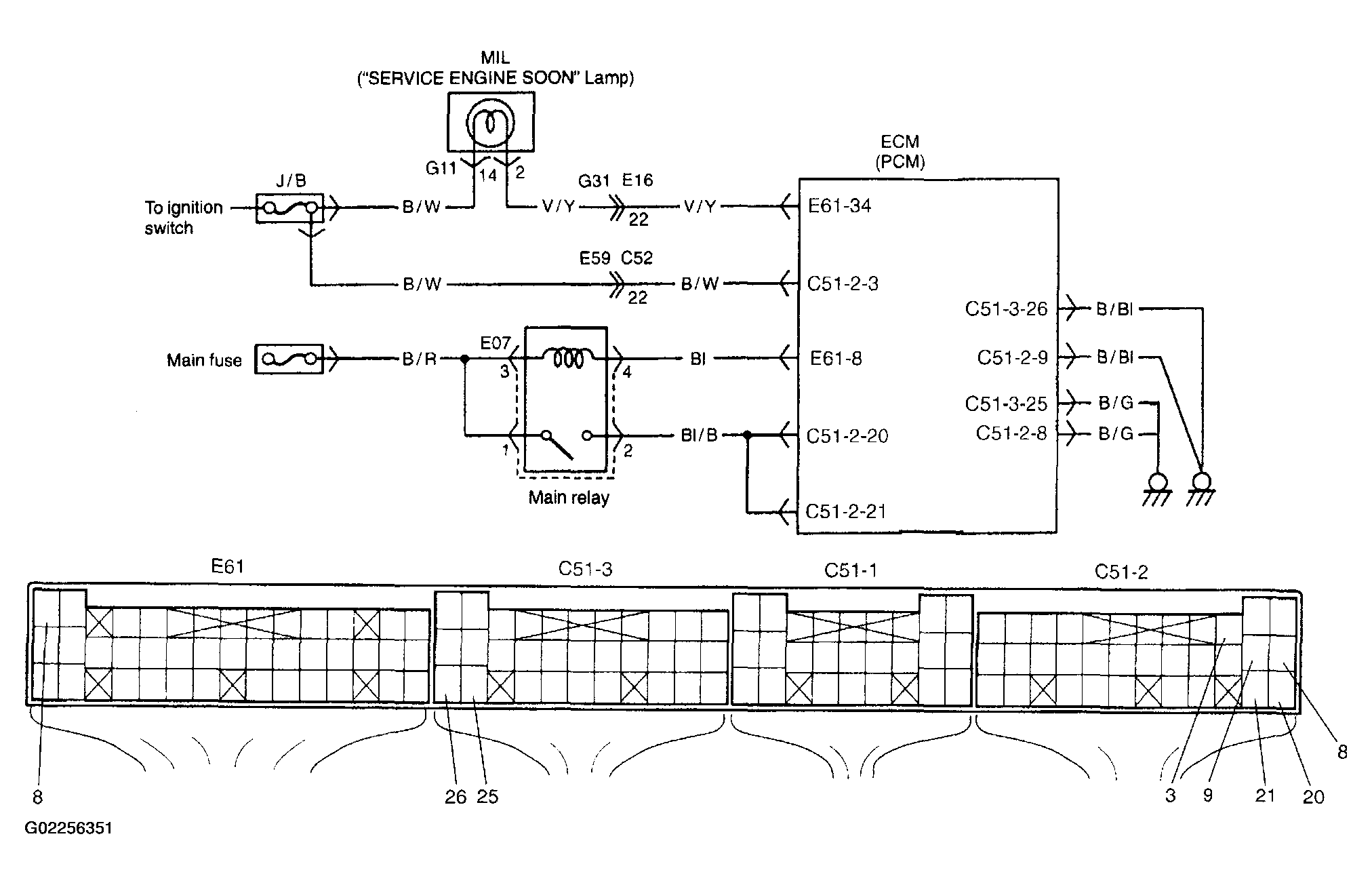

Fig 1: MIL Does Not Light At Ignition Switch On & Engine Does Not Start Though It Is Cranked Up Wiring Diagram
G02256351Courtesy of SUZUKI OF AMERICA CORP.
