MIL Does Not Come ON or MIL Dims at Ignition Switch ON Leaving Engine OFF: Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

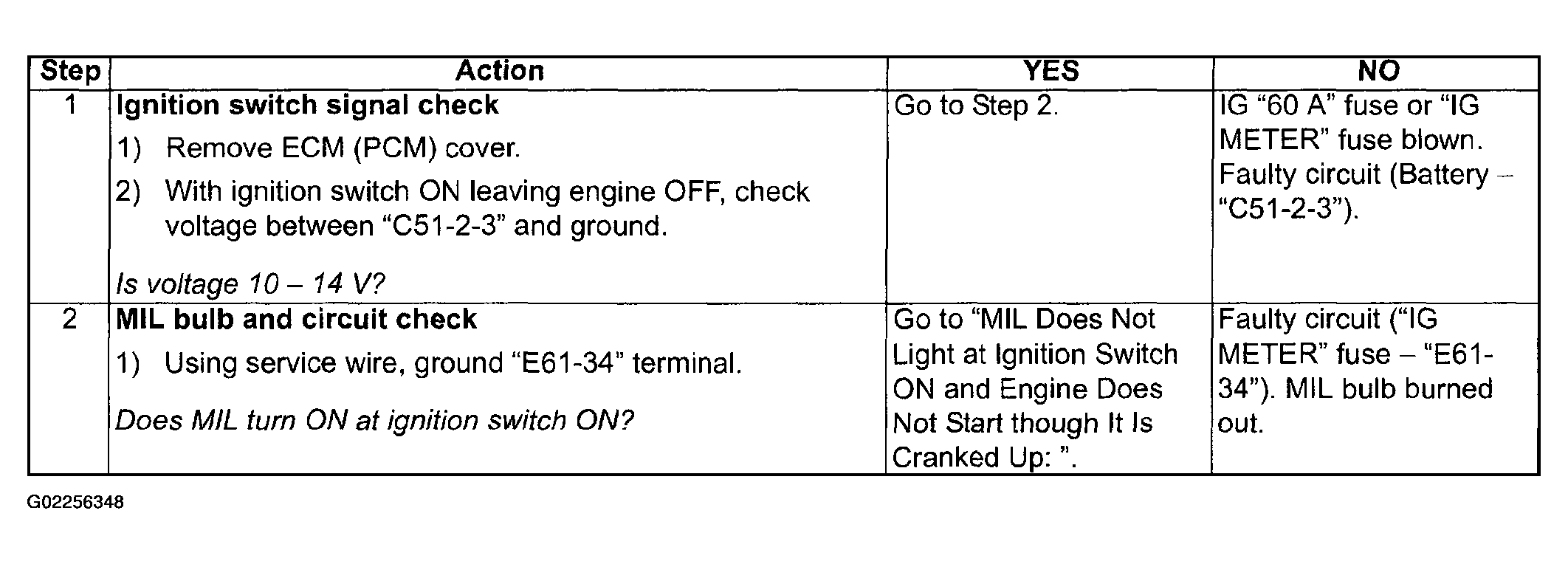

Fig 1: MIL Does Not Come On Or Mil Dims At Ignition Switch On Leaving Engine Off Troubleshooting Chart
G02256348Courtesy of SUZUKI OF AMERICA CORP.
