System Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Special tool

(A): 09912-58441

(B): 09912-58431

(C): 09919-46010

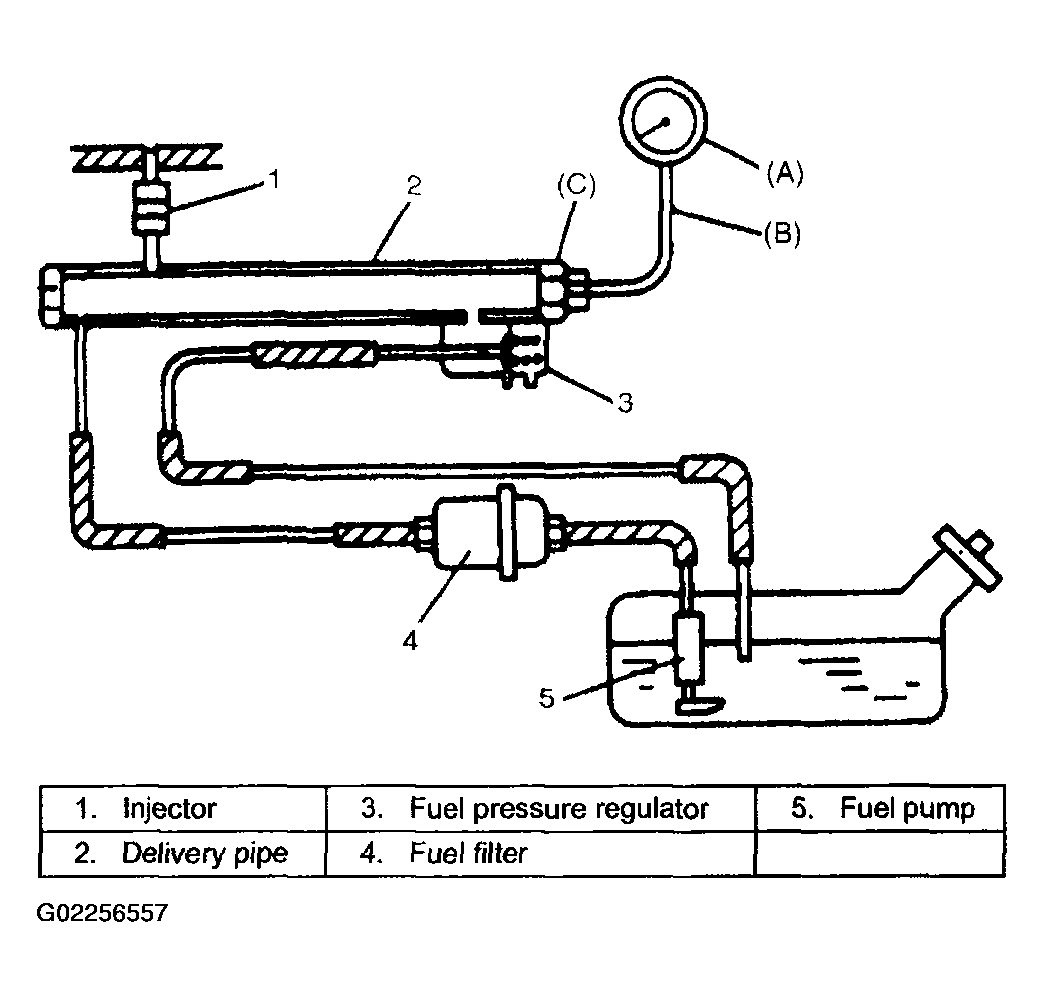

Fig 1: Fuel Pressure System Diagram
G02256557Courtesy of SUZUKI OF AMERICA CORP.
