DTC P2282: Air Leak between Throttle Body and Intake Valves: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

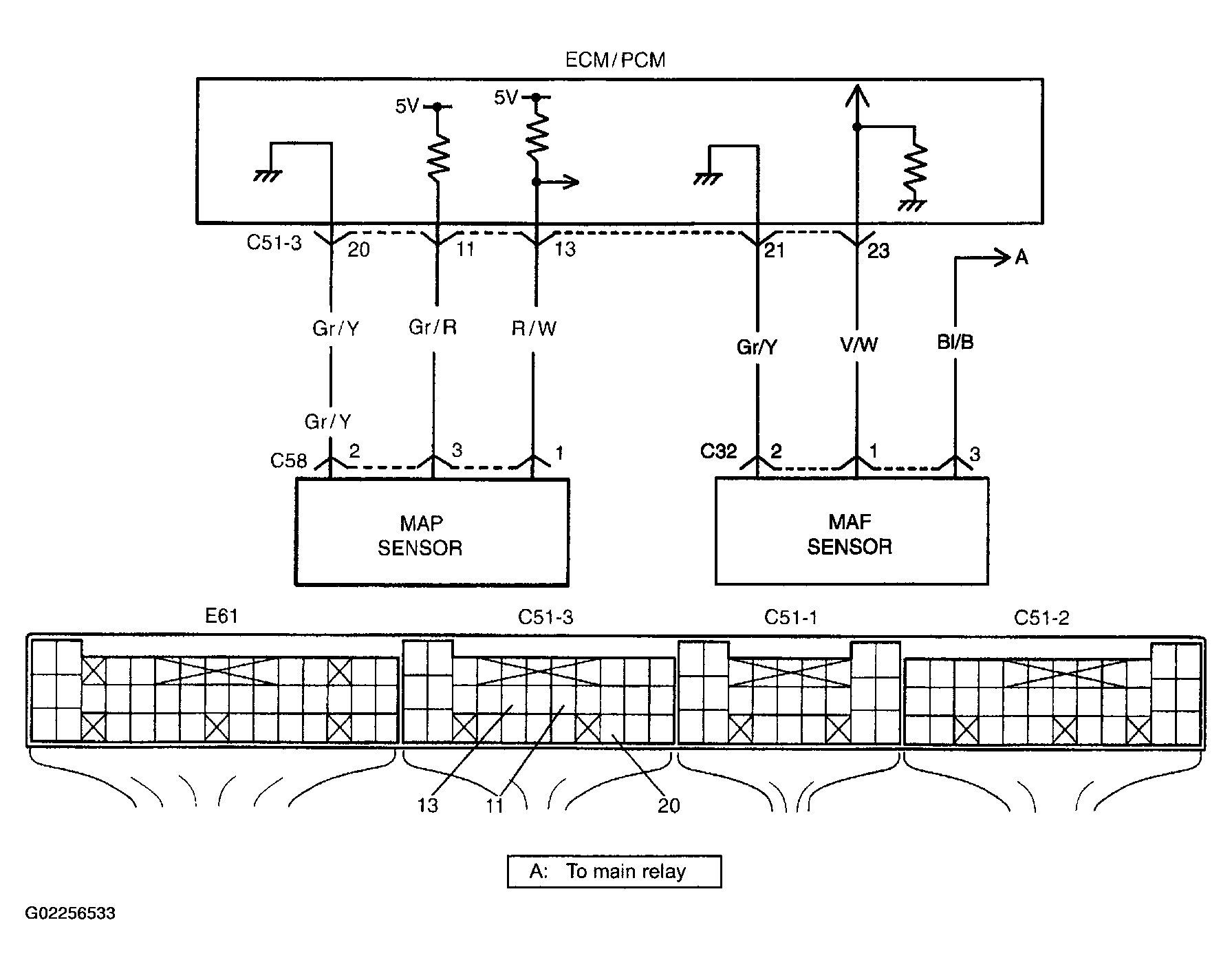

Fig 1: DTC P2282: Air Leak Between Throttle Body & Intake Valves Wiring Diagram
G02256533Courtesy of SUZUKI OF AMERICA CORP.
