DTC Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

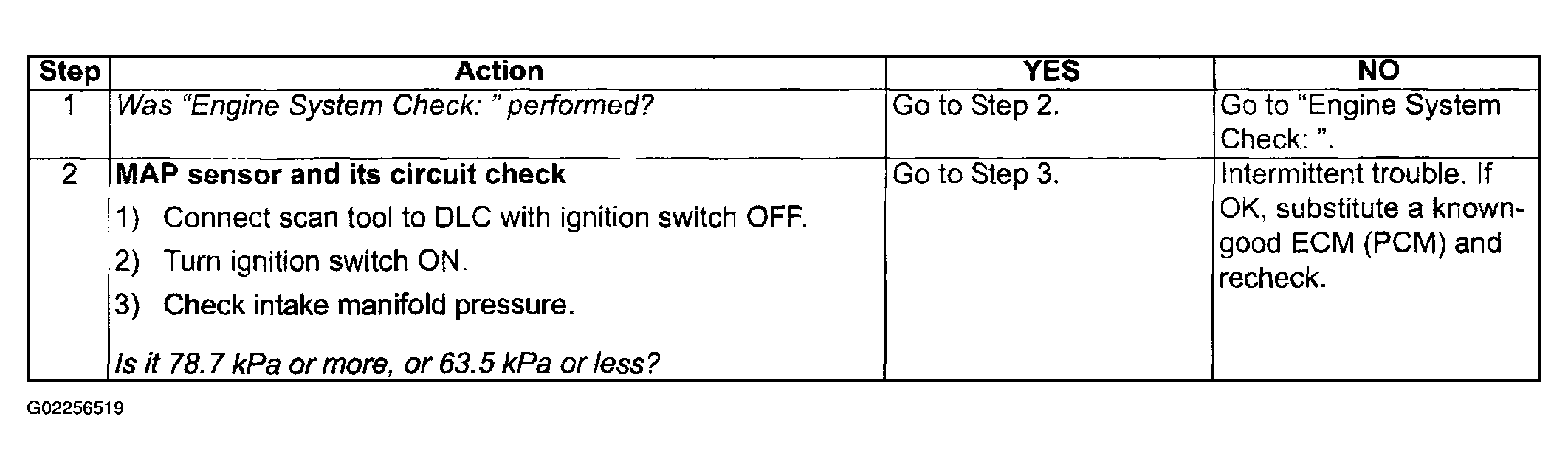

Fig 1: DTC P1107 / P1108: Manifold Absolute Pressure Sensor Circuit Performance Problem Low/High Troubleshooting Chart (1 Of 2)
G02256519Courtesy of SUZUKI OF AMERICA CORP.

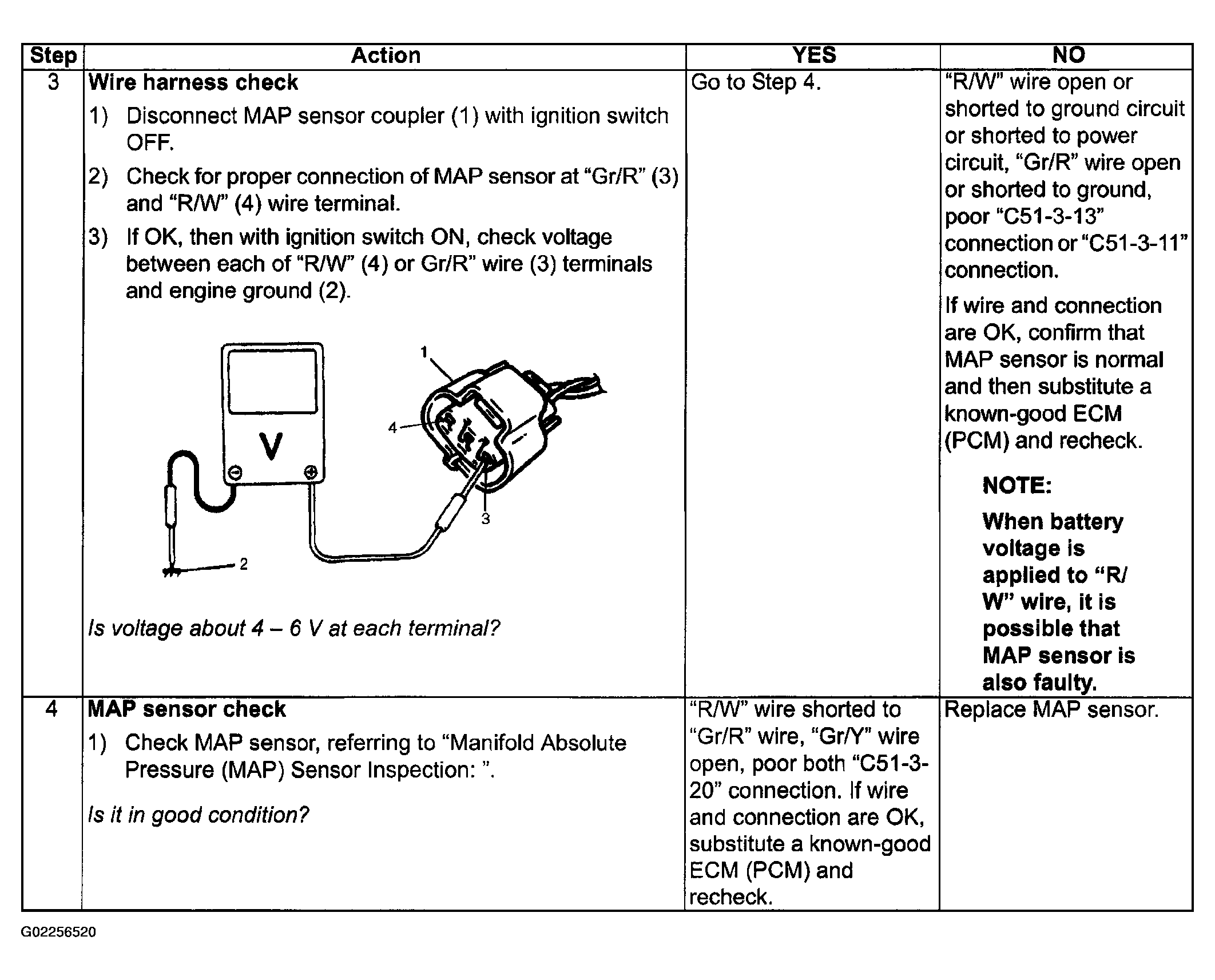

Fig 2: DTC P1107 / P1108: Manifold Absolute Pressure Sensor Circuit Performance Problem Low/High Troubleshooting Chart (2 Of 2)
G02256520Courtesy of SUZUKI OF AMERICA CORP.
