DTC P0500: Vehicle Speed Sensor (VSS) Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

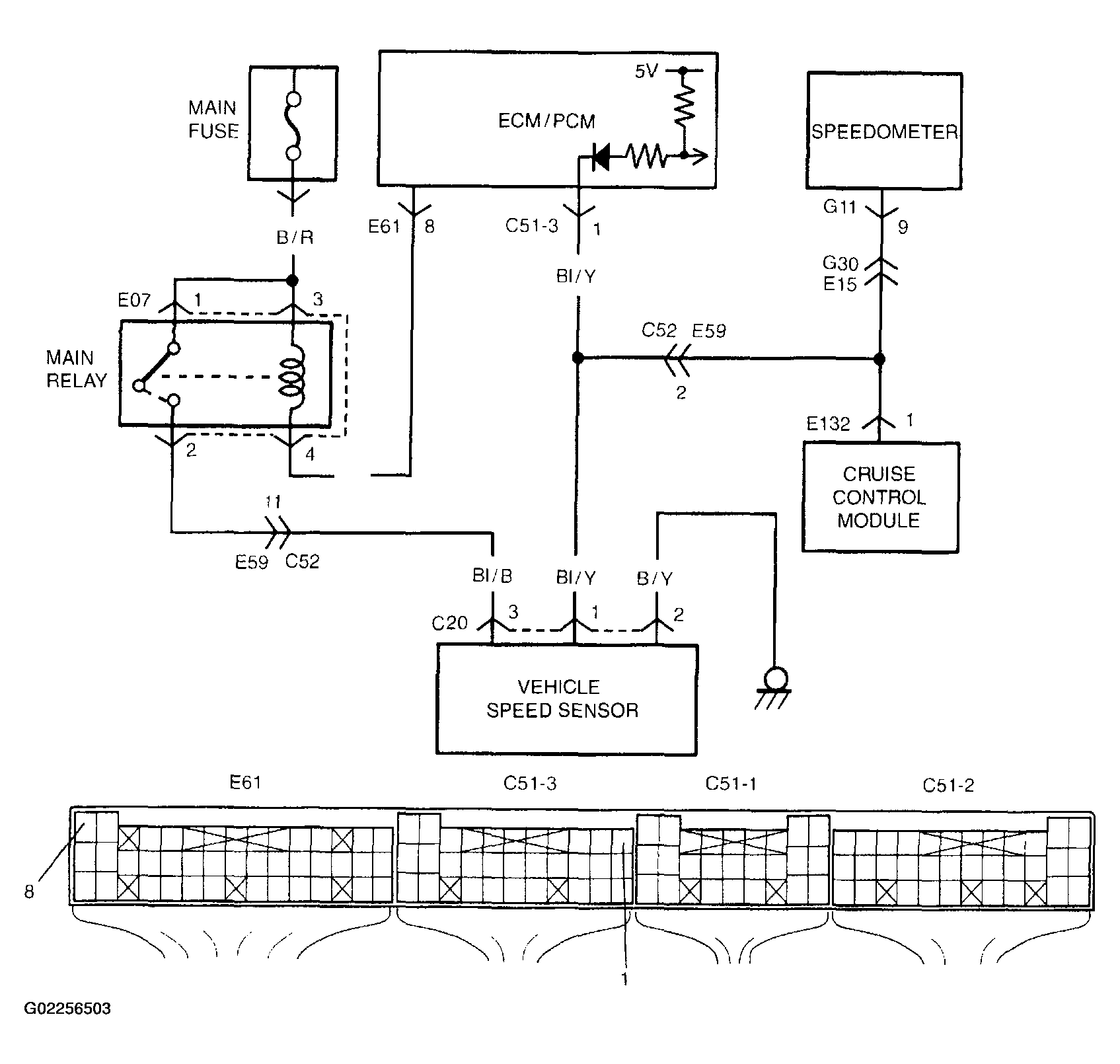

Fig 1: DTC P0500: Vehicle Speed Sensor (VSS) Malfunction Wiring Diagram
G02256503Courtesy of SUZUKI OF AMERICA CORP.
