Wiring Diagram / Circuit Description

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

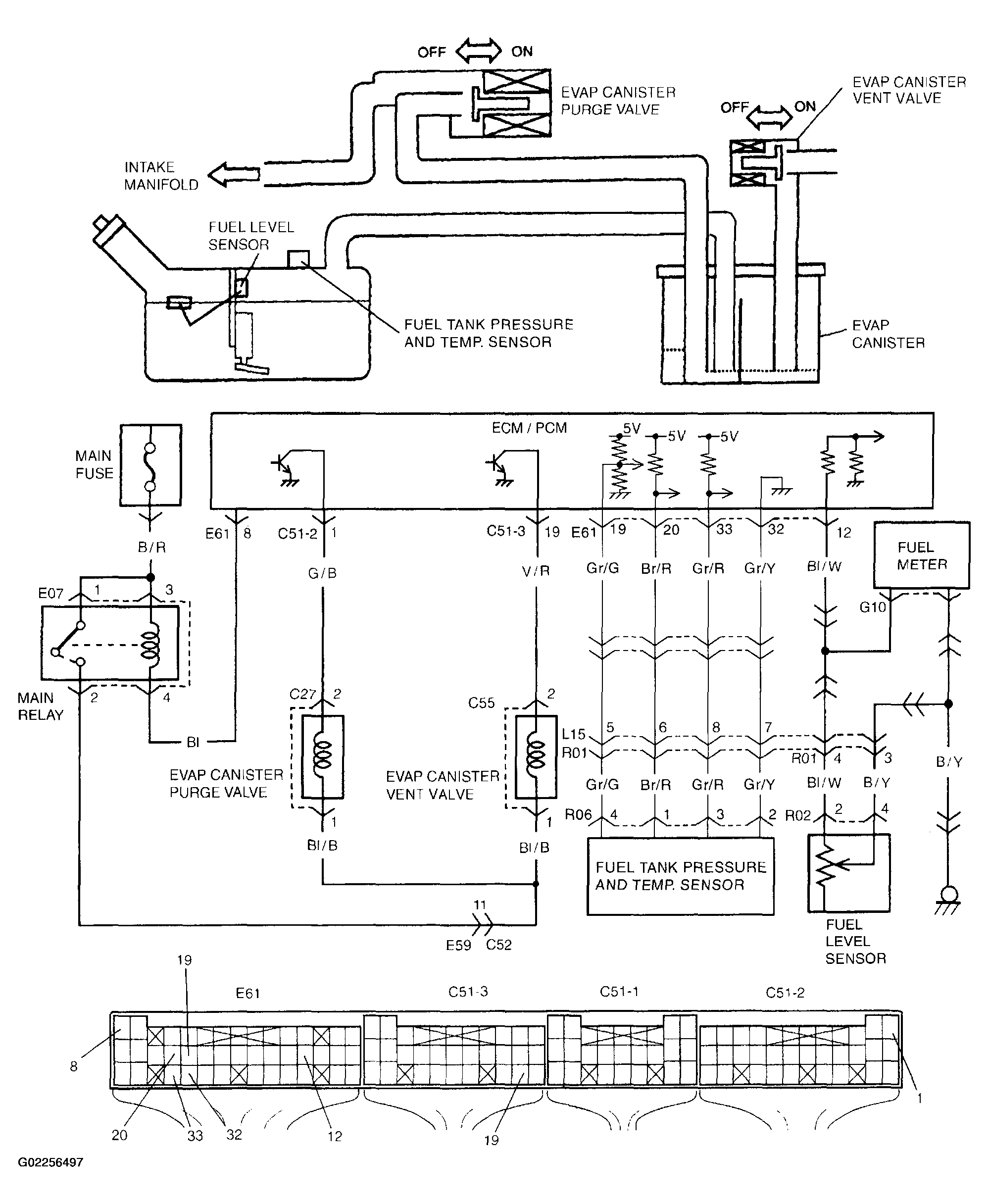

Fig 1: DTC P0463: Fuel Level Sensor Circuit High Input Wiring Diagram/Circuit Description
G02256497Courtesy of SUZUKI OF AMERICA CORP.
