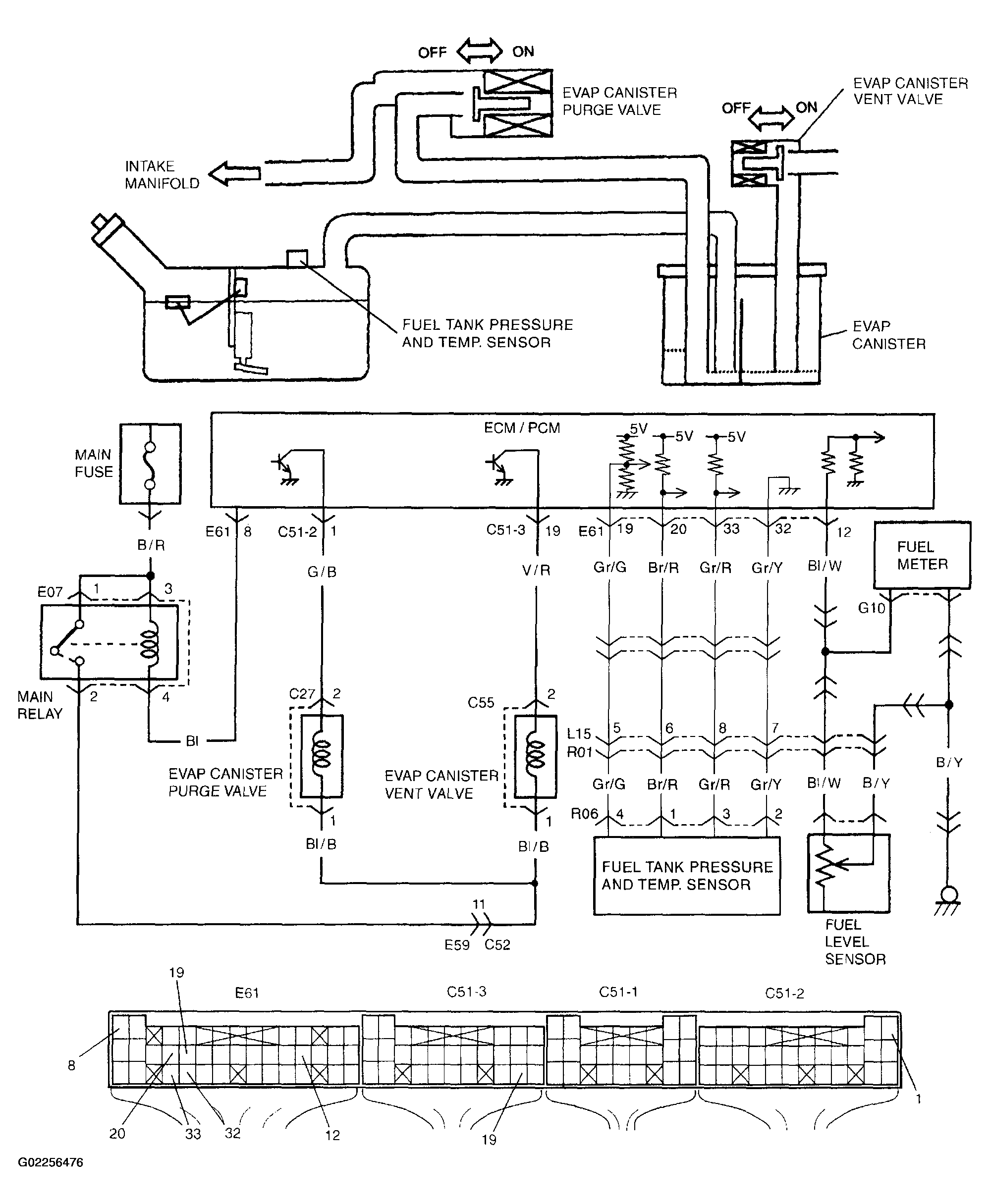

Fig 1: DTC P0445: Evaporative Emission Control System Purge Control Valve Circuit Shorted System/Wiring Diagram
