System / Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

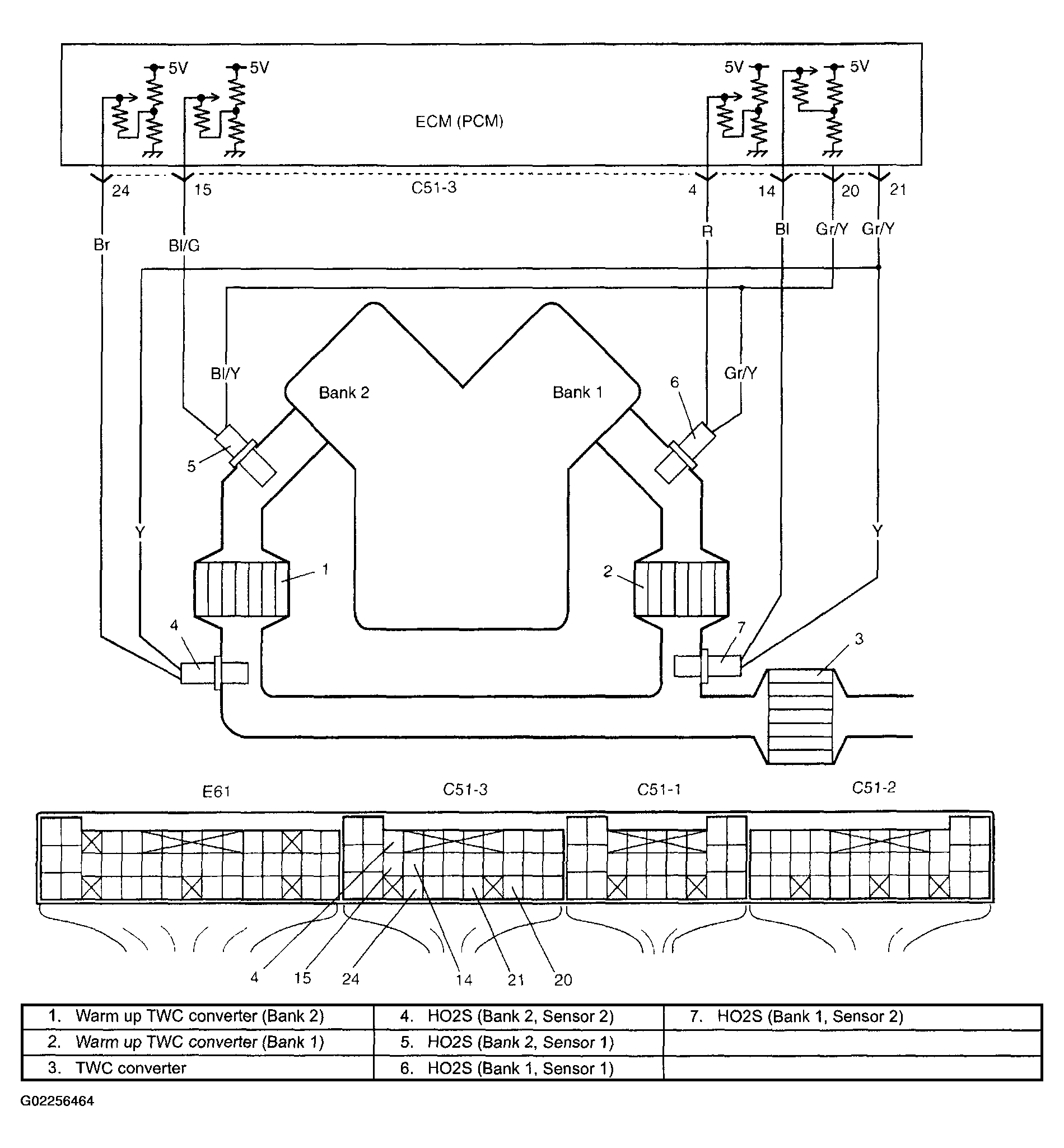

Fig 1: DTC P0420 / P0430: Catalyst System (Bank-1/-2) Efficiency Below Threshold System/Wiring Diagram
G02256464Courtesy of SUZUKI OF AMERICA CORP.
