Section 162 (Engine General Information & Diagnosis)
>>
Diagnostic Information and Procedures
>>
DTC P0401, P0402: Exhaust Gas Recirculation (EGR) Flow Insufficient Detected/Excessive Detected
>>
System/Wiring Diagram
System/Wiring Diagram
WARNING:
This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

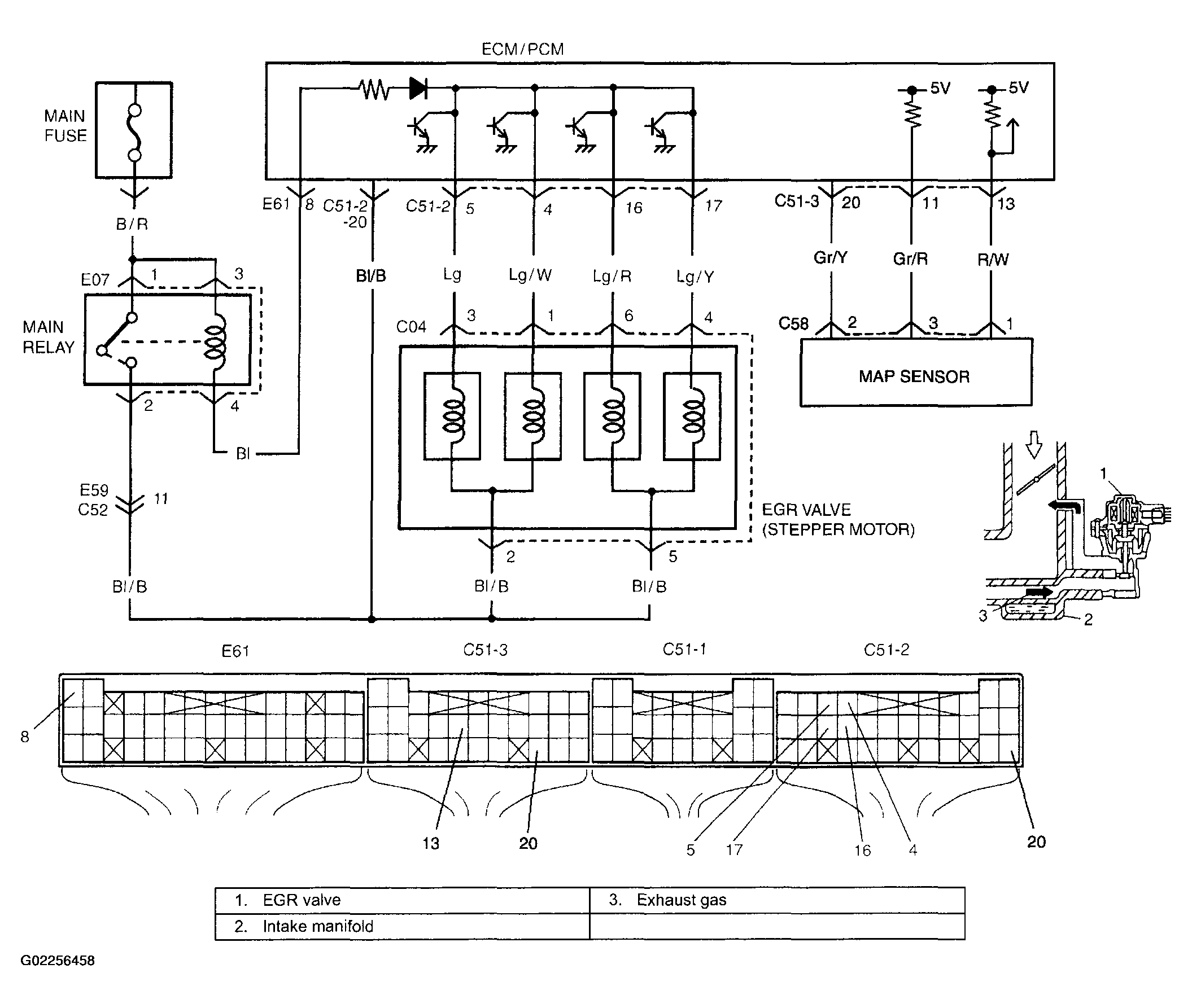

Fig 1: DTC P0401 / P0402: Exhaust Gas Recirculation (EGR) Flow Insufficient Detected/Excessive Detected System/Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
