DTC Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

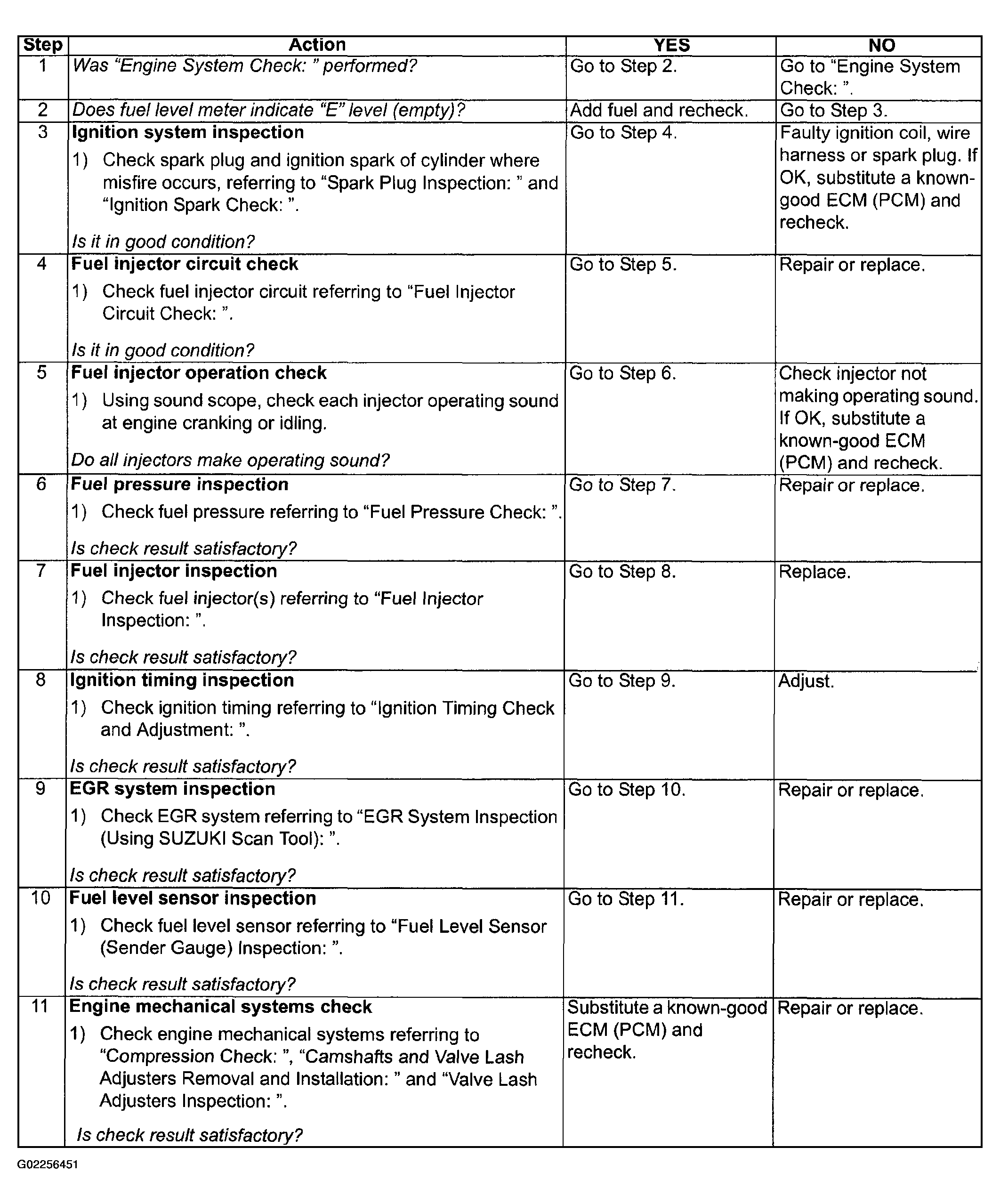

Fig 1: DTC P0300 / P0301 / P0302 / P0303 / P0304 / P0305 / P0306: Misfire Detected Troubleshooting Chart
G02256451Courtesy of SUZUKI OF AMERICA CORP.
