Section 162 (Engine General Information & Diagnosis)
>>
Diagnostic Information and Procedures
>>
DTC P0171, P0172: Fuel System Too Lean/Rich (Bank-1)
>>
DTC Troubleshooting
DTC Troubleshooting
WARNING:
This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

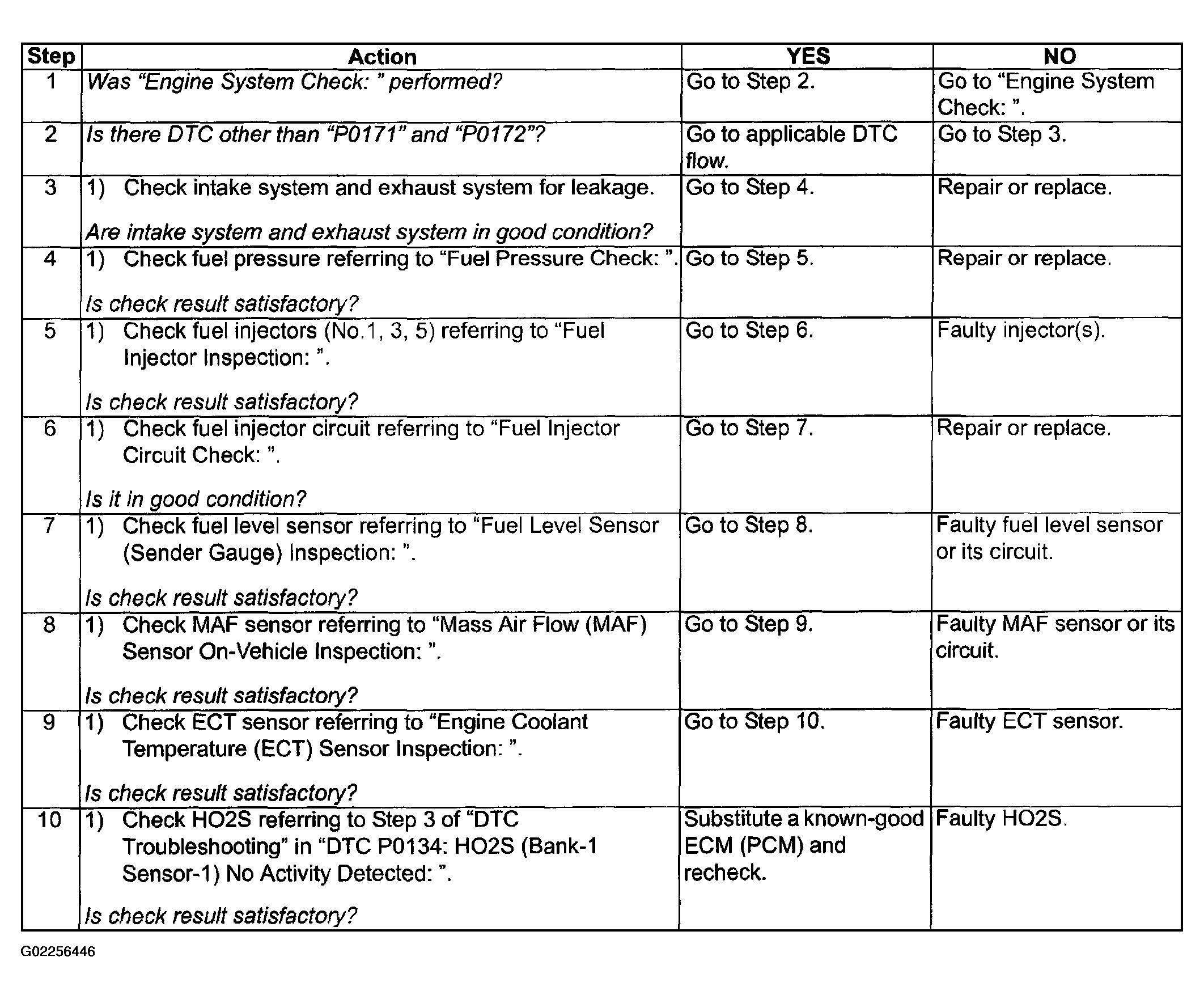

Fig 1: DTC P0171 / P0172: Fuel System Too Lean/Rich (Bank-1) Troubleshooting Chart
Courtesy of SUZUKI OF AMERICA CORP.
