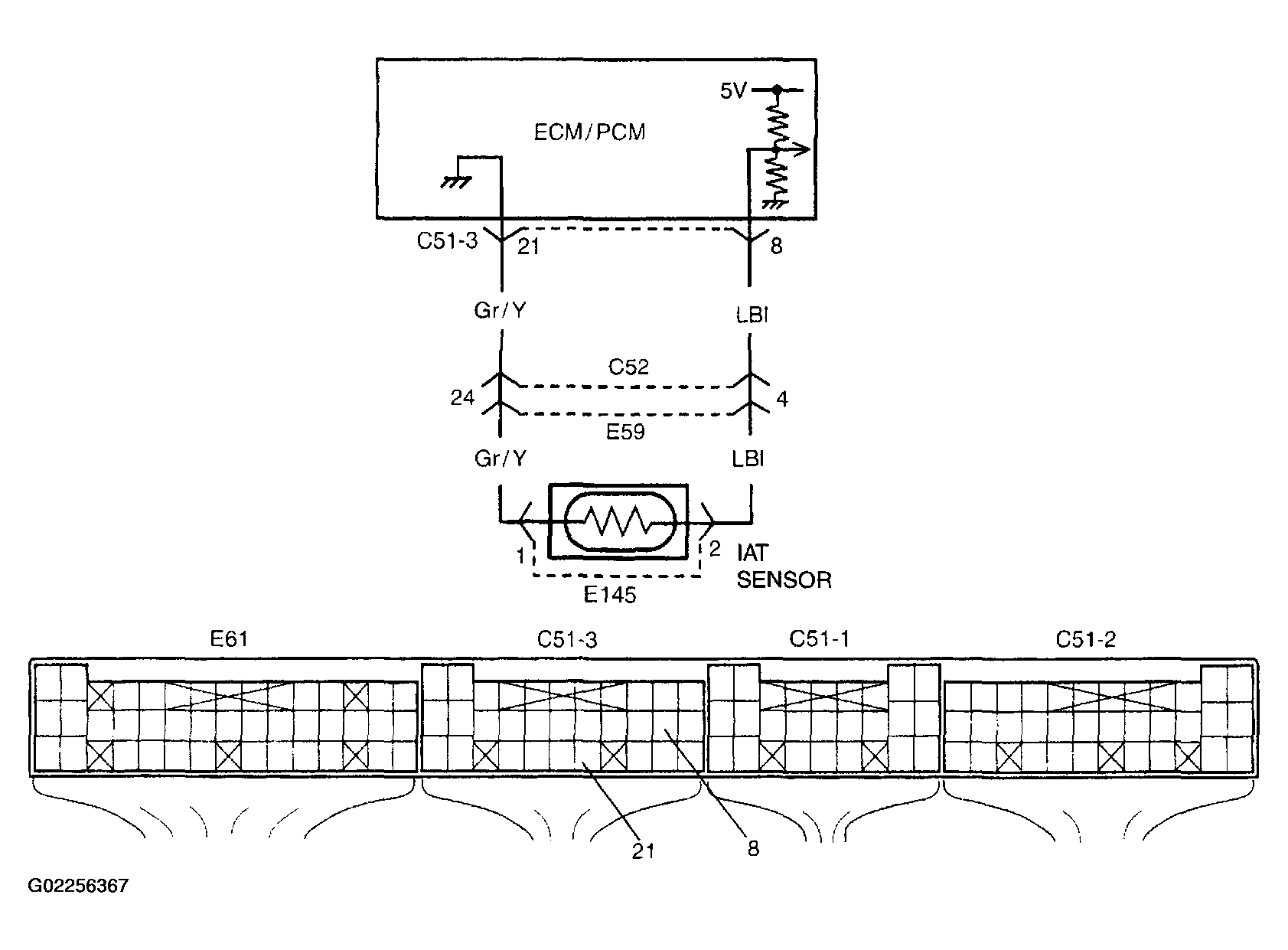

DTC P0111: Intake Air Temperature (IAT) Sensor Circuit Range / Performance Problem: Wiring Diagram

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
