Terminal Arrangement Of EBCM Connector (E136) (Viewed From Harness Side)
WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

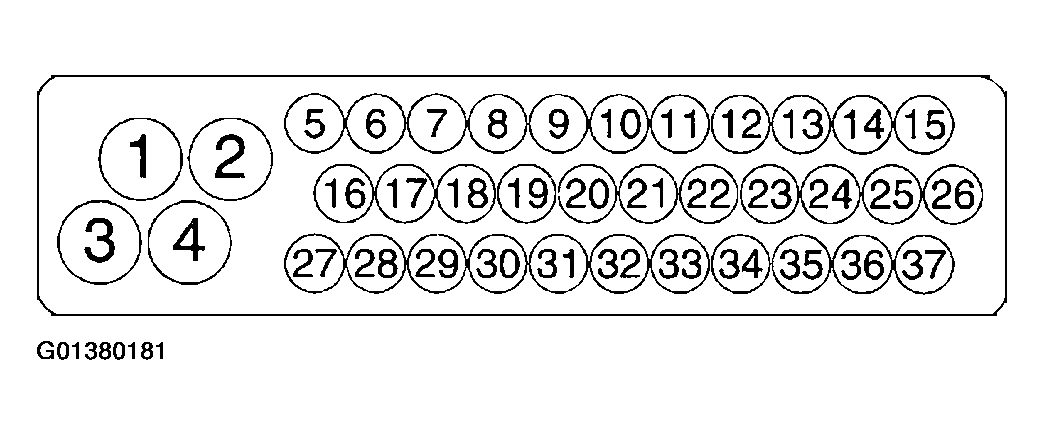

Fig 1: Identifying Terminal Arrangement Of EBCM Connector (E136) (Viewed From Harness Side - 1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

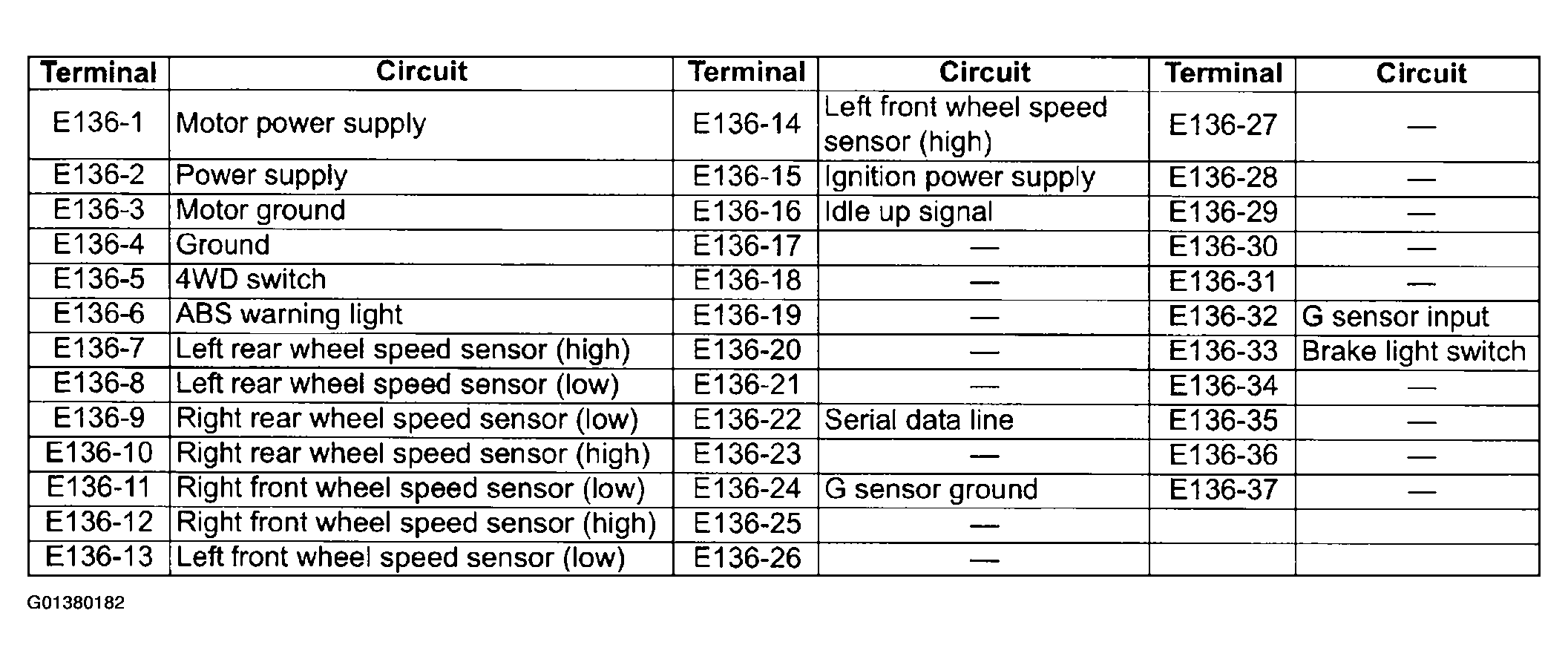

Fig 2: Identifying Terminal Arrangement Of EBCM Connector (E136) (Viewed From Harness Side - 2 Of 2)
