Abs Actuator (EBCM And BPMV) Assembly Removal And Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative cable from battery.
Using special tool, disconnect brake pipes (2) from ABS actuator (EBCM and BPMV) assembly (1).
NOTE: Put bleeder plug cap onto pipe to prevent fluid from spilling. Do not allow brake fluid to get on painted surfaces.

Special tool
1. (A): 09950-78220

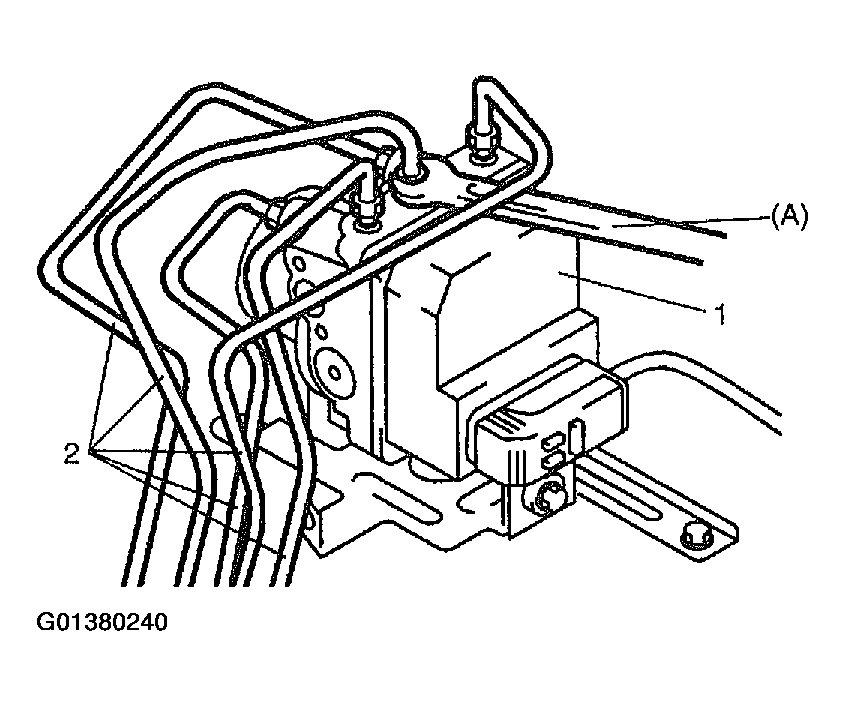

  Fig 1: Disconnecting Brake Pipes From ABS Actuator (EBCM & BPMV) Assembly
  Courtesy of SUZUKI OF AMERICA CORP.
Disconnect ABS actuator (EBCM and BPMV) assembly connector.

Fig 2: Disconnecting ABS Actuator (EBCM & BPMV) Assembly Connector
Courtesy of SUZUKI OF AMERICA CORP.
Remove bolt (2) and take out ABS actuator (EBCM and BPMV) assembly (1) from bracket (3).

CAUTION:

Do not give an impact to ABS actuator (EBCM and BPMV) assembly.
Use care not to allow dust to enter ABS actuator (EBCM and BPMV) assembly.
Do not place hydraulic unit on its side or upside down. Handling it in inappropriate way will affect its original performance.

Fig 3: Removing ABS Actuator (EBCM & BPMV) Assembly
Courtesy of SUZUKI OF AMERICA CORP.
