Abs Actuator (EBCM And BPMV) Assembly Removal And Installation: Installation

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Install ABS actuator (EBCM and BPMV) assembly by reversing removal procedure.

Torque bolt and nut to specified torque.
Tightening torque
1. Brake pipe flare nut (a): 16 N.m (1.6 kg-m, 12.0 lb-ft)
2. ABS actuator assembly bolt (b): 23 N.m (2.3 kg-m, 17.0 lb-ft)
3. ABS actuator assembly bracket bolt (c): 10 N.m (1.0 kg-m, 7.5 lb-ft)

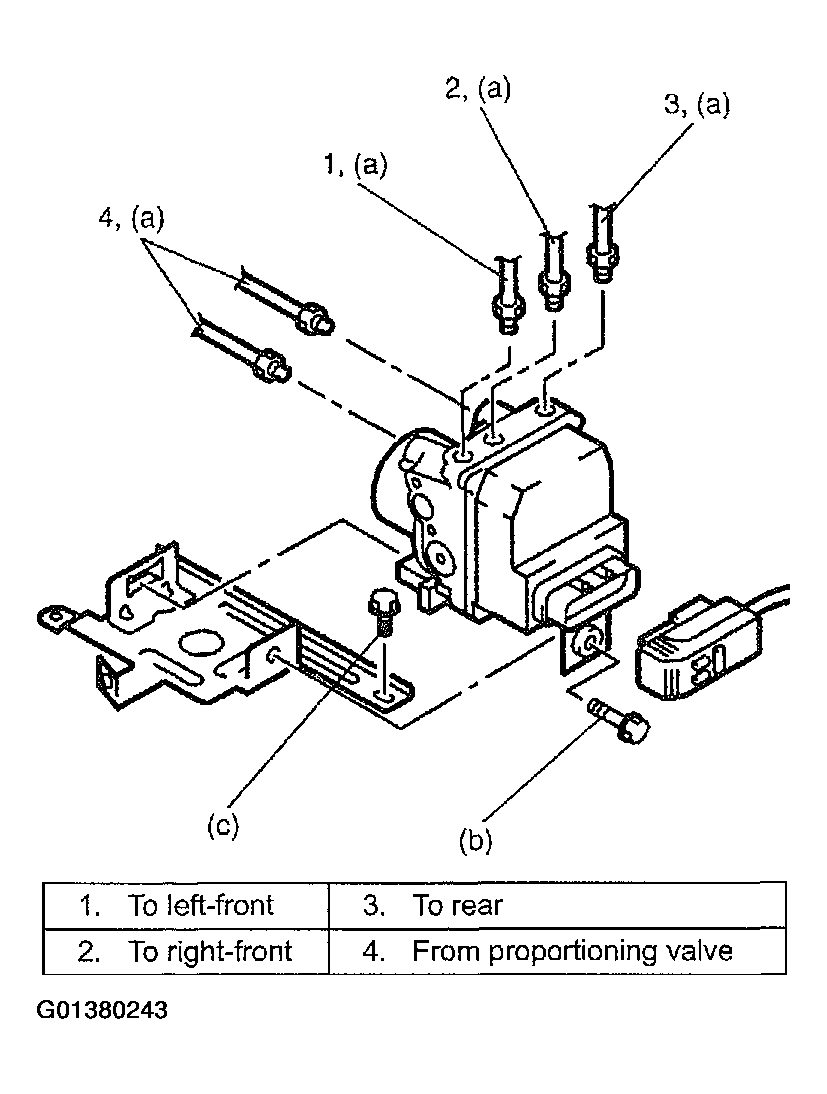

  Fig 1: Installing ABS Actuator (EBCM & BPMV) Assembly
  Courtesy of SUZUKI OF AMERICA CORP.
Bleed air from brake system referring to "Air Bleeding".
Check each installed part for fluid leakage and perform ABS actuator (EBCM and BPMV) assembly operation check.
