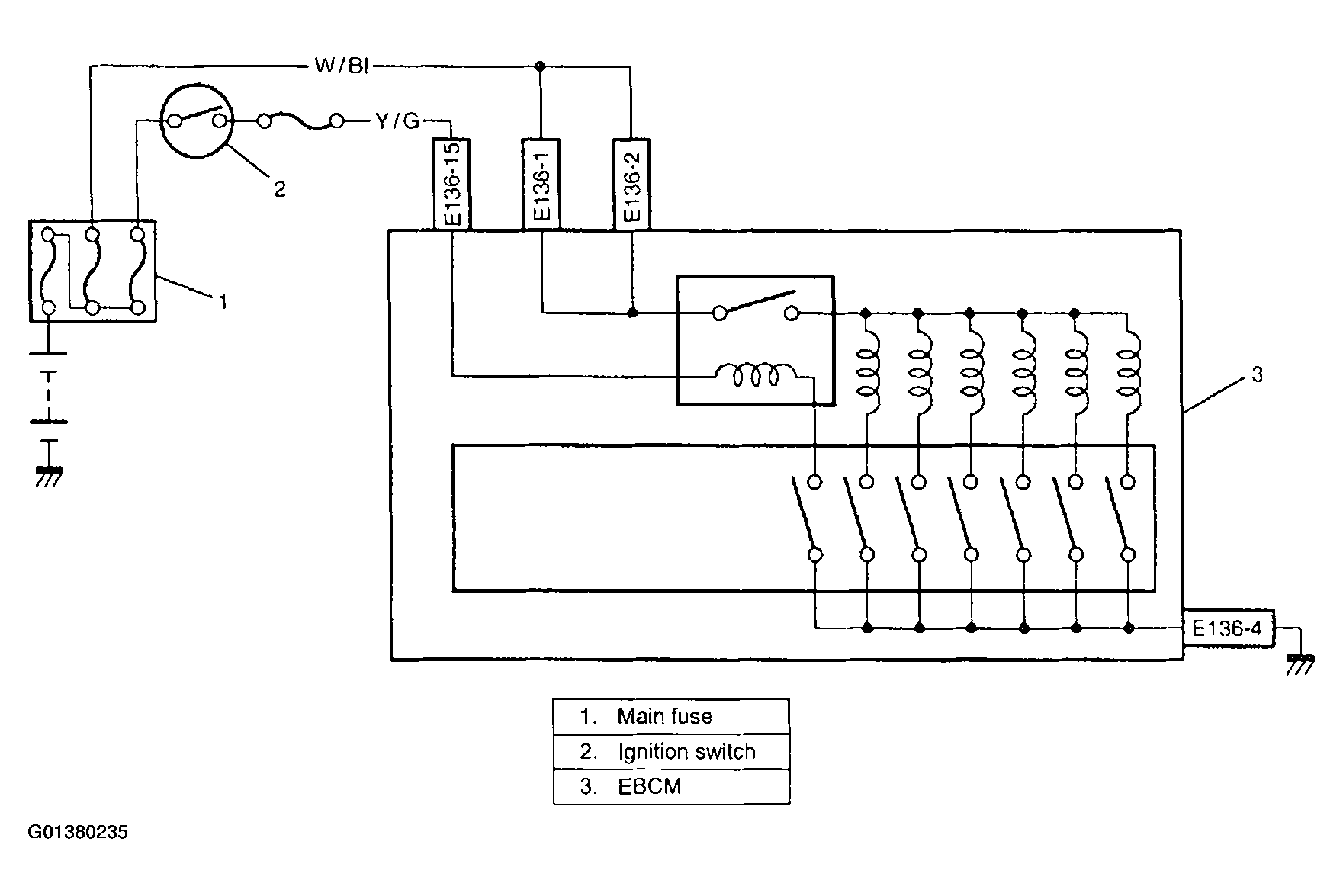

DTC C1261/C1262/C1263/C1264/C1267/C1268: Apply Or Release Solenoid Shorted Or Open: Wiring Diagram

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
