DTC C1255/C1256: EBCM Internal Malfunction (Abs Disabled / Functional): Wiring Diagram

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

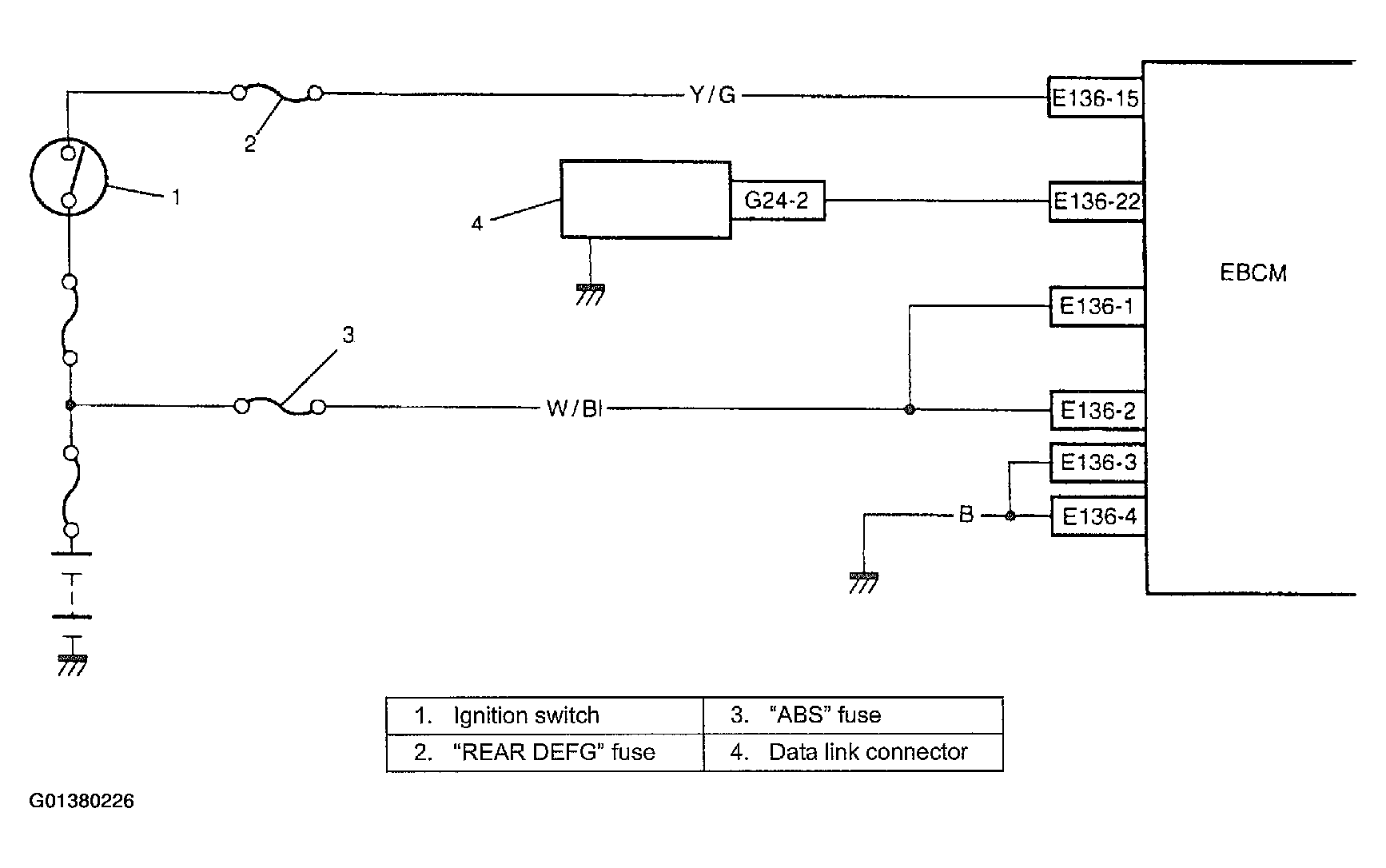

Fig 1: EBCM Internal Malfunction (ABS Disabled / Functional) Wiring Diagram
G01380226Courtesy of SUZUKI OF AMERICA CORP.
