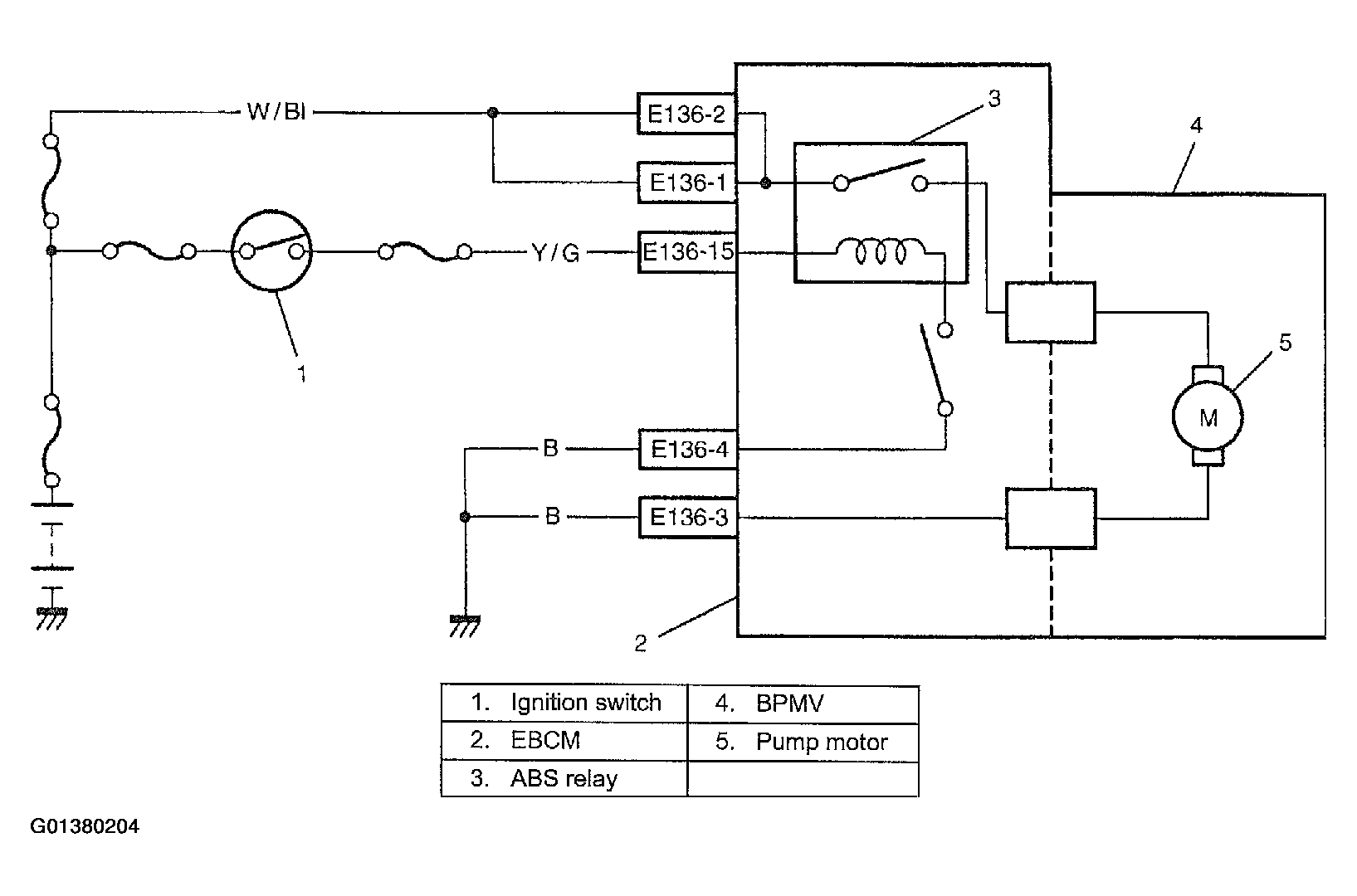

DTC C1218 / C1243: Pump Motor Ground Circuit Open, High Resistance Or Shorted To Battery / Pump Motor Stalled: Wiring Diagram

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
