Customer Complaint Analysis

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Record details of the problem (failure, complaint) and how it occurred as described by the customer.

For this purpose, use of such a questionnaire form as shown below will facilitate collecting information to the point required for proper analysis and diagnosis.

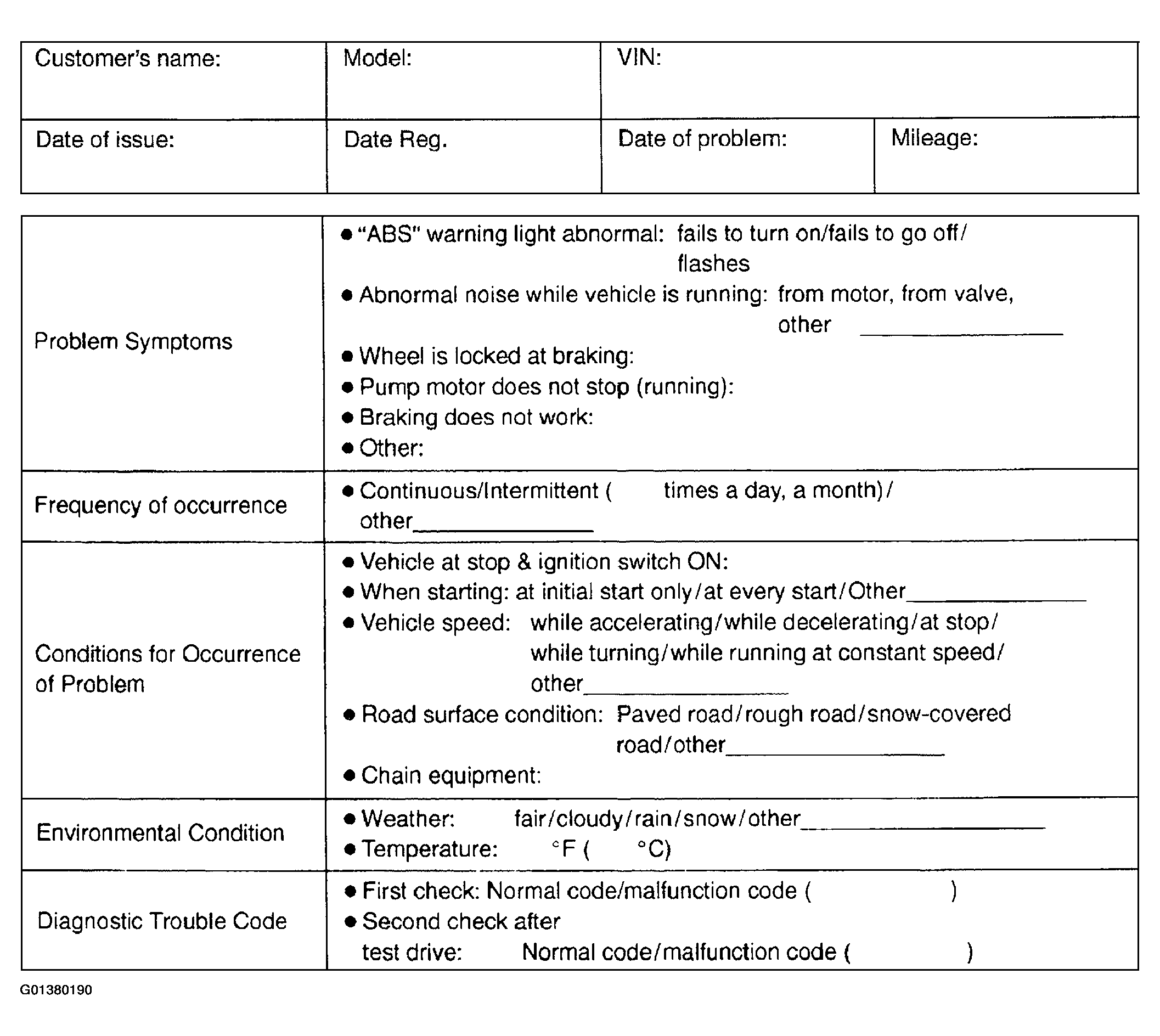

Fig 1: Customer Questionnaire (Example)
G01380190Courtesy of SUZUKI OF AMERICA CORP.
