<< H >> Camshaft Sprocket Removal

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. While holding the camshaft sprocket with special tools MB990767 and MD998719, loosen the camshaft sprocket bolt.

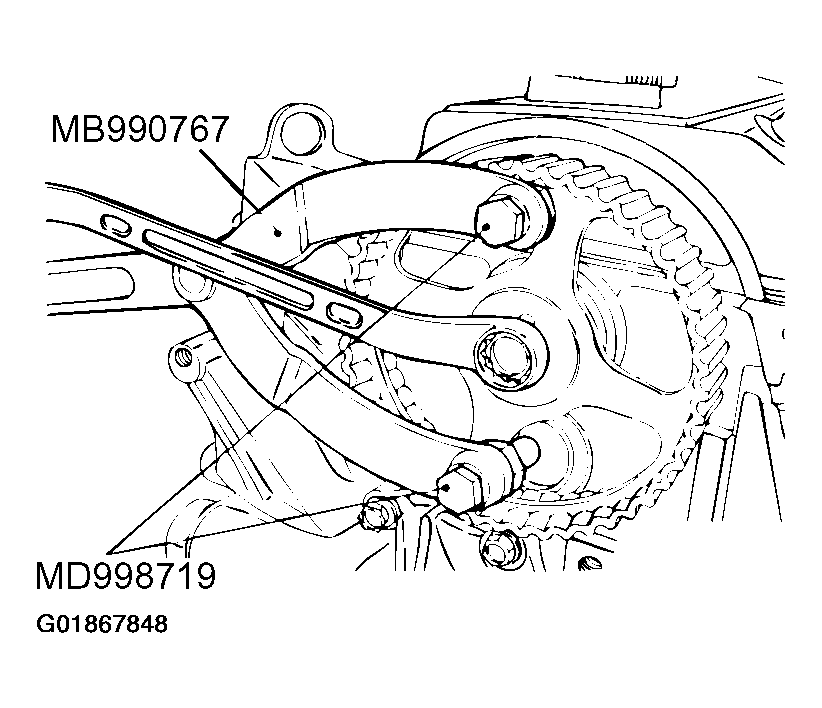

    Fig 1: Loosening Camshaft Sprocket Bolt
    G01867848Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Remove the camshaft sprocket.
