<< F >> Counterbalance Shaft Sprocket Removal

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set special tool MD998785 as shown to prevent the counterbalance shaft sprocket from turning together.

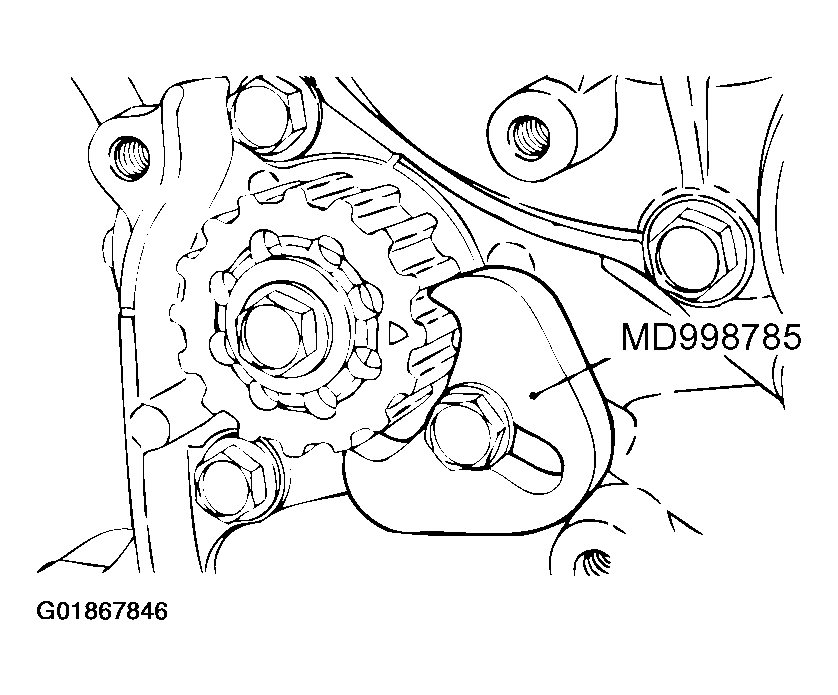

    Fig 1: Setting Special Tool MD998785
    G01867846Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Loosen the bolt and remove the sprocket.
