<< E >> Timing Belt "B" Removal

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Water or oil on the belt shortens its life drastically, so the removed timing belt, sprocket, and tensioner must be free from oil and water. These parts should not be washed or immersed in solvent. Replace parts if contaminated. If there is oil or water on each part, check the front case oil seals, camshaft oil seal and water pump for leaks.
  1. Mark the belt running direction for reinstallation.

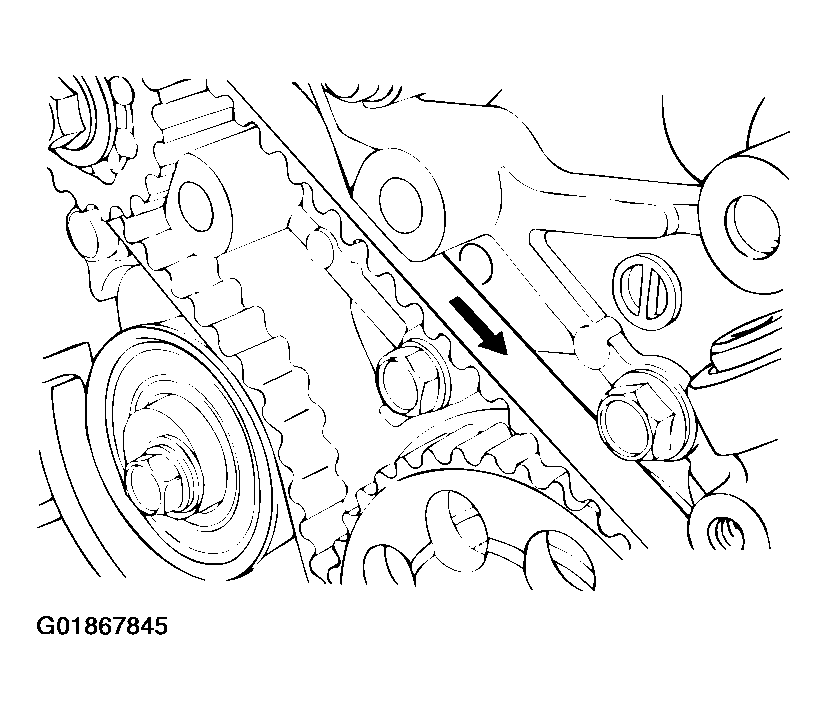

    Fig 1: Marking Timing Belt For Reinstallation (Running Direction) Mark
    G01867845Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Loosen the tensioner "B" bolt, and then remove the timing belt "B".
