<< C >> Crankshaft Bolt Loosening

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install special tool MD998781 to hold the flywheel or drive plate.

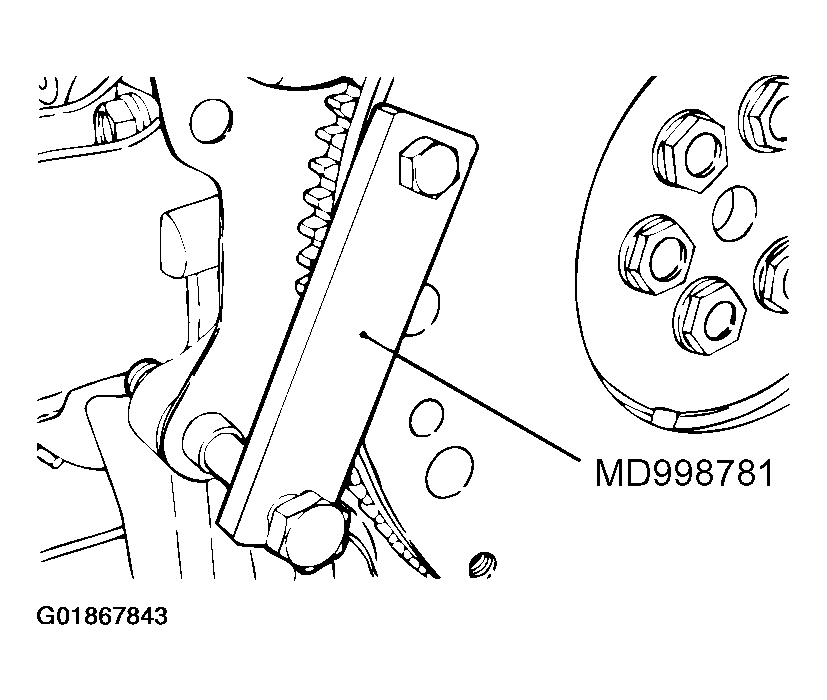

    Fig 1: Installing Special Tool MD998781 To Hold Flywheel
    G01867843Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Loosen and remove the crankshaft bolt and washer.
