>> I << Auto-TENSIONER Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

If the auto-tensioner rod is fully extended, reset it as follows:

Clamp the auto-tensioner in a vise with soft jaws.

Fig 1: Clamping Auto-Tensioner In Vise
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Push in the rod little by little with the vise until the set hole A in the rod is aligned with hole B in the cylinder.

Fig 2: Locating Set Hole A In Rod And Hole B In Cylinder
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert a wire [1.4 mm (0.055 inch) in diameter] into the set holes. This auto-tensioner setting wire will be used during timing belt alignment.

Fig 3: Inserting Wire Into Set Holes
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Unclamp the auto-tensioner from the vise.
CAUTION: Leave the wire installed in the auto-tensioner.

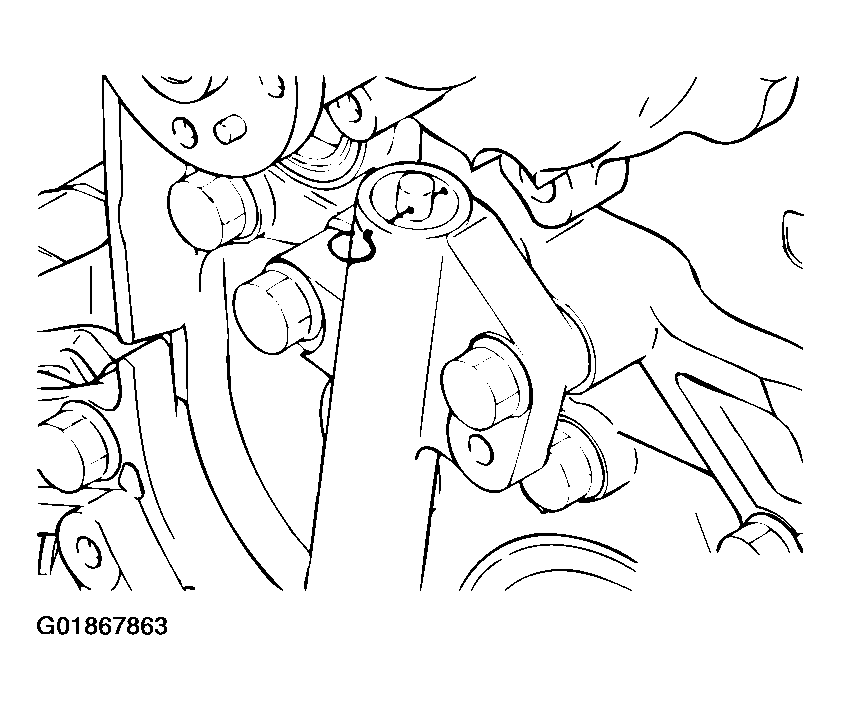

Install the auto-tensioner onto the front case and tighten to the specified torque.
1. Tightening torque: 23 +/- 3 N.m (17 +/- 2 ft-lb)
