>> G << Crankshaft Sensing Blade/Crankshaft Sprocket/Crankshaft Pulley Washer/Crankshaft Bolt Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Clean and then degrease the contacting surfaces of the crankshaft sprocket, sensing blade and crankshaft.
NOTE: Degreasing is necessary to prevent decrease in the friction between contacting surfaces.

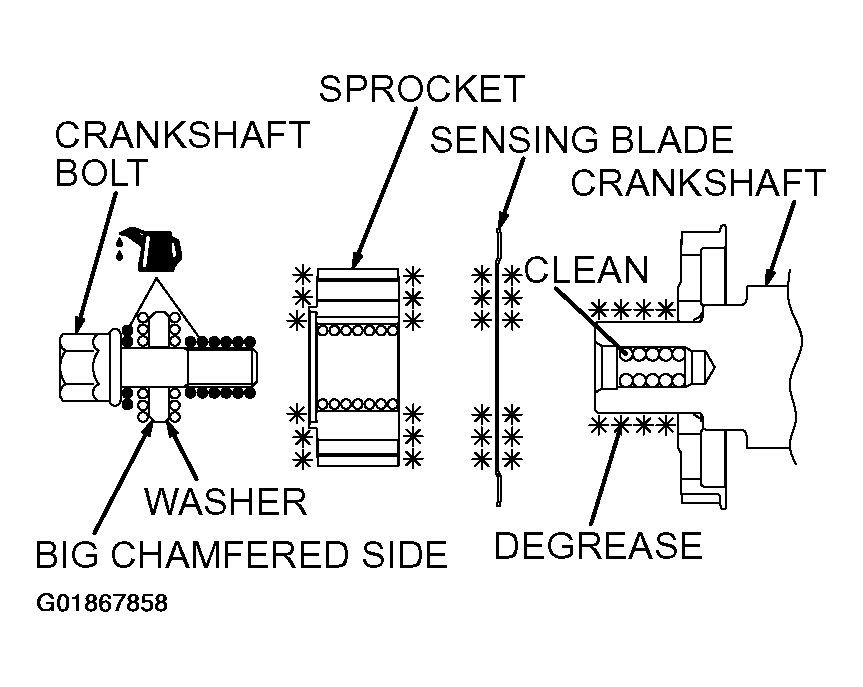

Fig 1: Clean & Degrease Contacting Surfaces Of Crankshaft Sprocket, Sensing Blade & Crankshaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Clean the bolt hole in the crankshaft, the crankshaft contacting surface of the crankshaft sprocket, and the washer.
Install the sensing blade and the crankshaft sprocket to the crankshaft.
Apply a small amount of engine oil to the threads and seating surface of the crankshaft bolt.
Install the washer to the crankshaft bolt with the larger chamfered side toward the bolt head.
Lock the flywheel or drive plate using the special tool.

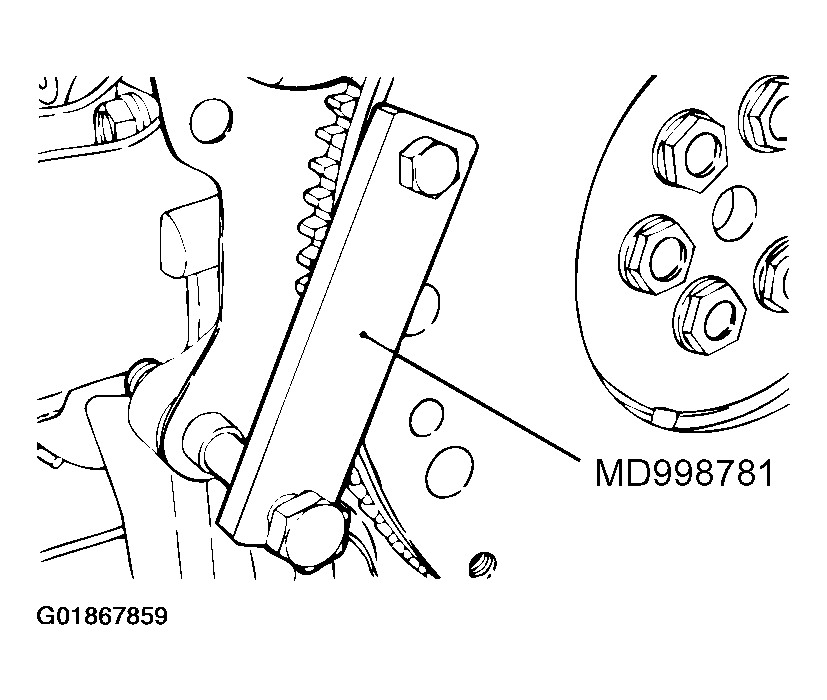

Fig 2: Locking Flywheel Or Drive Plate Using Special Tool
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten the crankshaft bolt to the specified torque.
1. Tightening torque: 162 +/- 5 N.m (119 +/- 4 ft-lb)
