<< A >> Rocker Arms And Rocker Arm Shaft Removal

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If the lash adjuster is re-used, clean the lash adjuster. (Refer to >> C << CAMSHAFT OIL SEAL INSTALLATION )

Set special tool MD998443 to prevent the lash adjuster from coming free and falling to the floor.

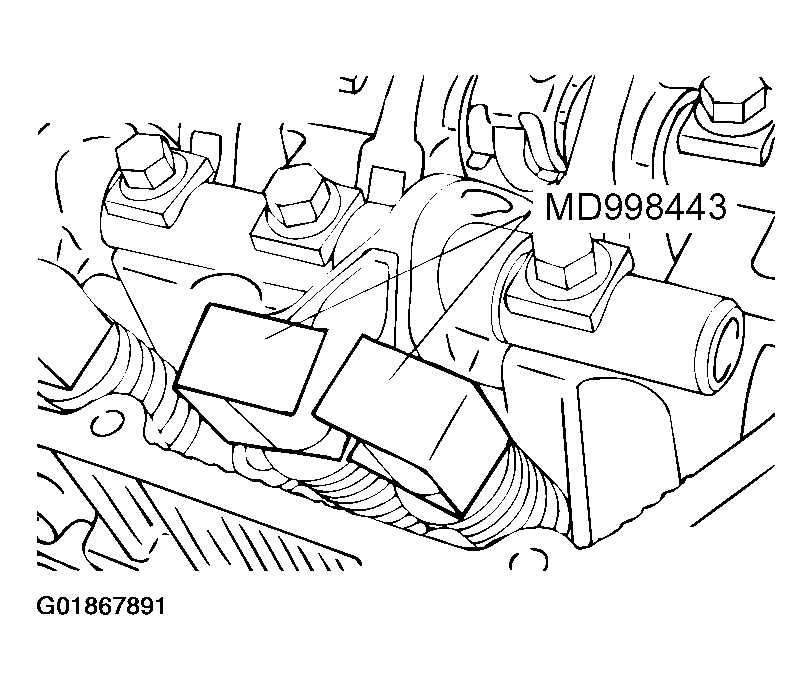

Fig 1: Setting Special Tool MD998443 To Hold Lash Adjuster
G01867891Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
