<< D >> Plug Removal

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit special tool MD998162 on the plug, and then hold it in position with special tool MD998783.

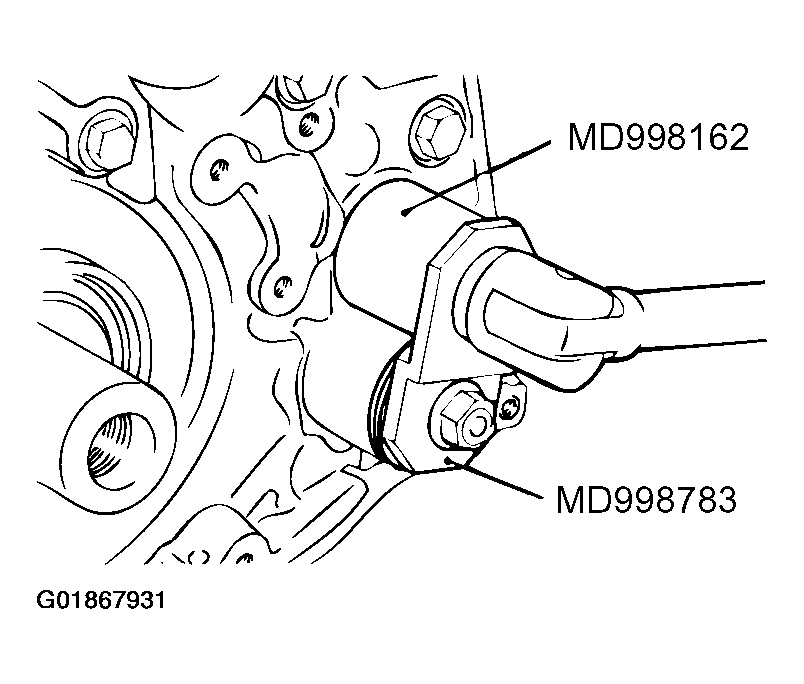

    Fig 1: Removing Oil Pan Plug
    G01867931Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Loosen the plug.
  3. Remove special tools MD998783 and MD998162 and then remove the plug.
