>> M << Drain Plug Gasket Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If the gasket is installed in the wrong direction, oil leaks will occur.

Install the drain plug gasket in the direction shown.

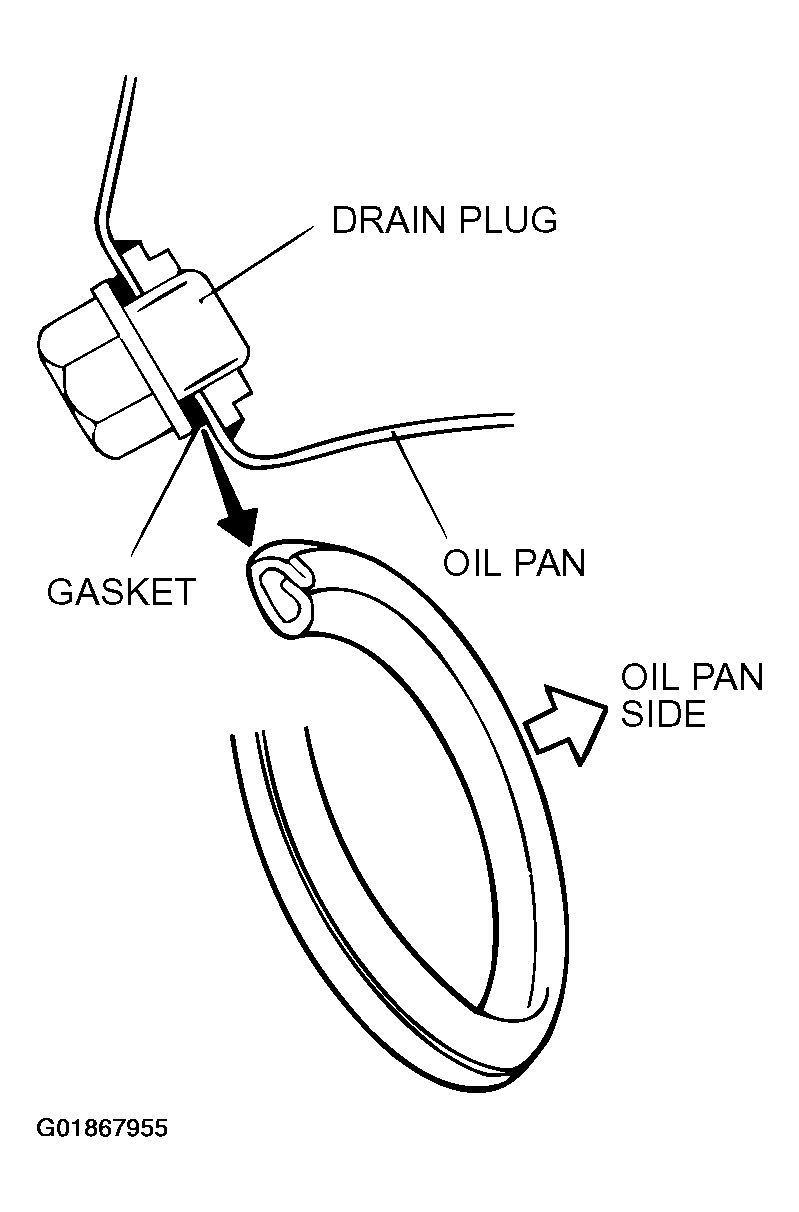

Fig 1: Identifying Drain Plug Gasket Correct Installation Position
G01867955Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
