>> K << Oil Pan Upper/Oil Pan Lower Installation <4WD>

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Clean both gasket surfaces of oil pan upper and cylinder block.
Apply a 4 mm (0.15 inch) diameter bead of sealant (MITSUBISHI Genuine Part number MD970389 or equivalent) to the flange of the oil pan.
Apply sealant as indicated by the line in the illustration; the grooves must be traced and the bolt holes must be surrounded with a bead of sealant.

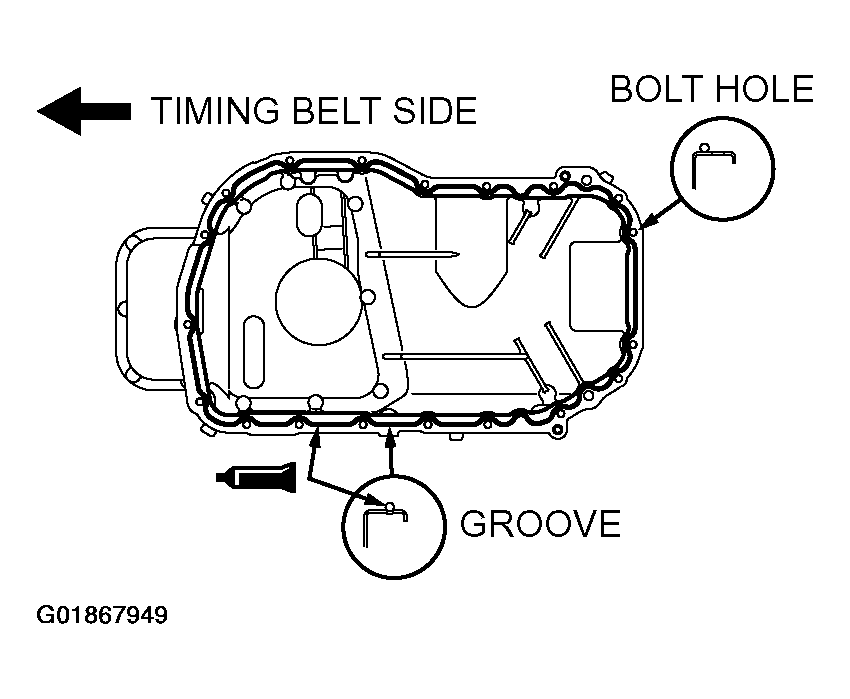

Fig 1: Identifying Sealant Application Surface Of Upper Oil Pan Flange - 4WD
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the oil pump case assembly to the front side of the cylinder block.
NOTE: Be sure to install the oil pan quickly while the sealant is wet (within 15 minutes).
Fit a 6 mm (0.23 inch) long bolt in each of the two holes identified by the letter "S" in the illustration and a 6 mm (0.23 inch) long bolt in each of the remaining 16 holes. Tighten all bolts to the specified torque.
1. Tightening torque: 9 +/- 3 N.m (80 +/- 27 in-lb)
  NOTE: After installation, keep the sealed area away from oil for approximately one hour.

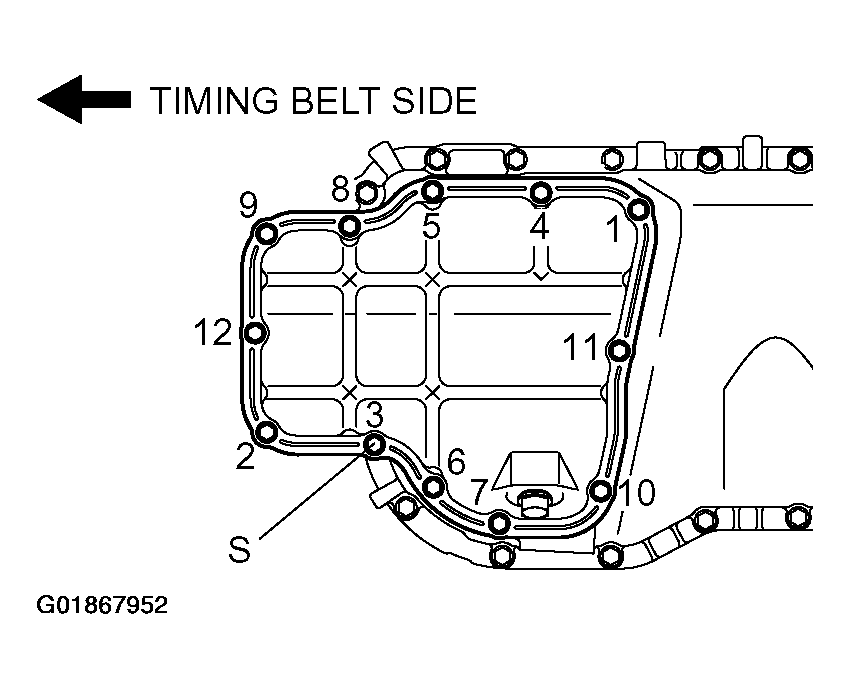

Fig 2: Identifying 6 mm Long Bolt Installation Position Indicated By Letter S - 4WD
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Clean both gasket surfaces of oil pan upper and oil pan lower.
Apply a 4 mm (0.15 inch) diameter bead of sealant (MITSUBISHI Genuine Part number MD970389 or equivalent) to the flange of the oil pan.
Apply sealant as indicated by the line in the illustration; the grooves must be traced and the bolt holes must be surrounded with a bead of sealant.

Fig 3: Identifying Sealant Application Surface - 4WD
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the oil pump case assembly to the front side of the cylinder block.
NOTE: Be sure to install the oil pan quickly while the sealant is wet (within 15 minutes).
Fit a 8 mm (0.30 inch) long bolt in the one hole identified by the letter "S" in the illustration and a 75 mm (2.95 inch) long bolt in each of the remaining 11 holes. Tighten all bolts to the specified torque.
1. Tightening torque: 9 +/- 3 N.m (80 +/- 26 in-lb)
  NOTE: After installation, keep the sealed area away from oil for approximately one hour.

  Fig 4: Identifying 8 mm Long Bolt Installation Position Indicated By Letter S - 4WD
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
