>> I << Flange Bolt Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a Phillips head screwdriver [shank diameter 8 mm (0.3 inch)] into the hole in the left side of the cylinder block to lock the counterbalance shaft.
    Fig 1: Inserting Screwdriver Into Hole Of Cylinder Block To Lock Counterbalance Shaft
    G01867946Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Secure the oil pump driven gear onto the left counterbalance shaft by tightening the flange bolt to the specified torque.
    1. Tightening torque: 36 +/- 3 N.m (27 +/- 2 ft-lb)
  3. Pull out the screwdriver and screw in the plug.

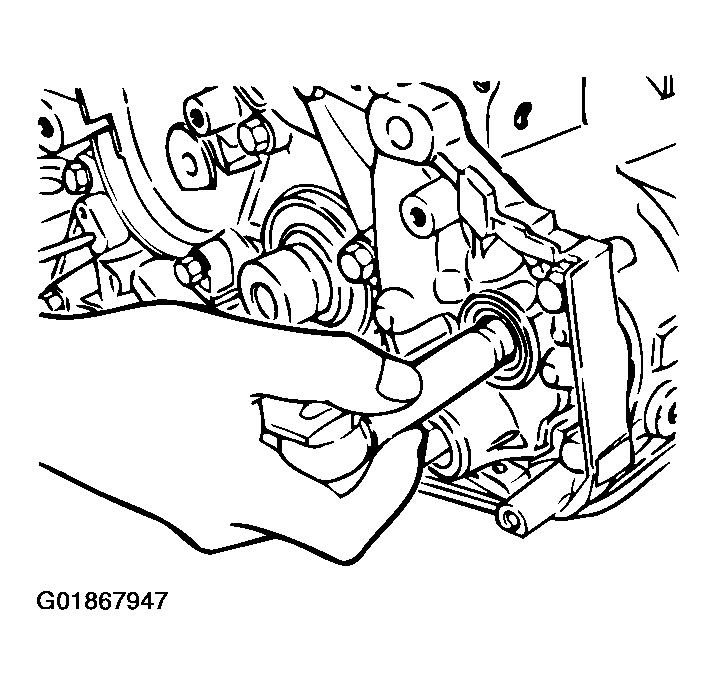

    Fig 2: Screwing In Plug
    G01867947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
