<< A >> Cylinder Head Bolts Removal

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Using special tool MB991654, loosen the cylinder head bolts. Loosen each bolt evenly, little by little, by two or three steps.

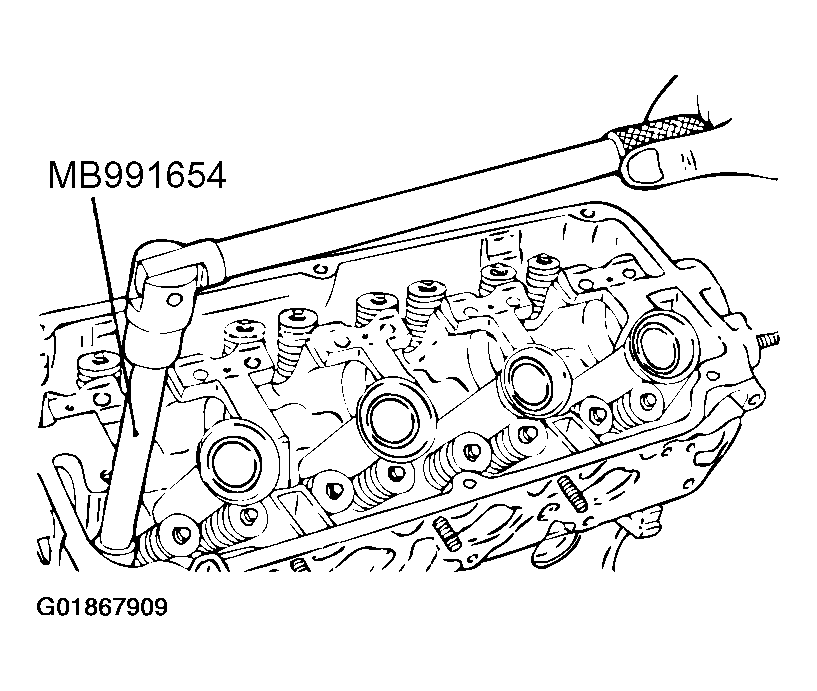

Fig 1: Loosening Cylinder Head Bolts
G01867909Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
