>> C << Retainer Lock Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not compress the valve spring excessively. It can damage the stem seal.
  1. Set special tool MD998772 as illustrated to compress the valve spring. Install the retainer locks.

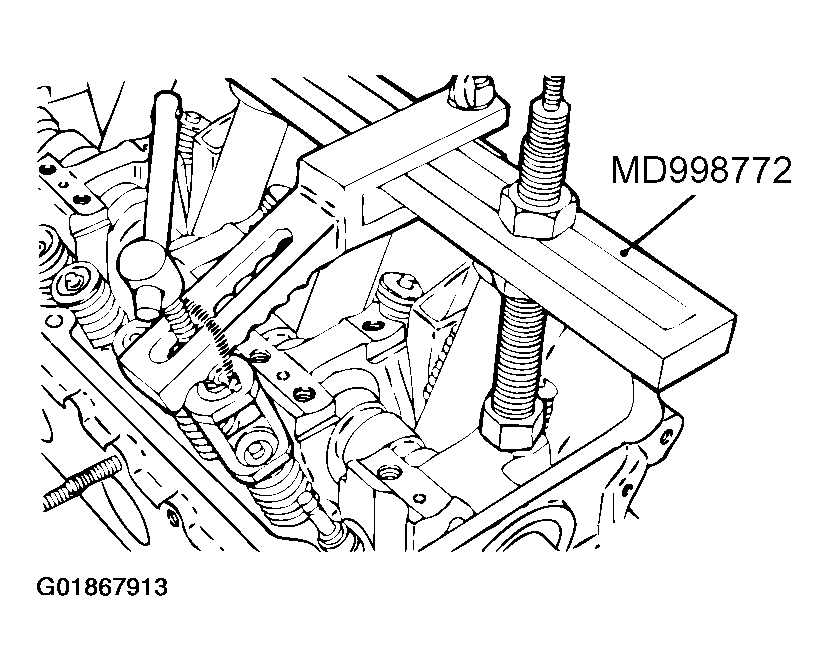

    Fig 1: Installing Retainer Lock Using Special Tool
    G01867913Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Relieve the spring tension. Check that the retainer locks are seated correctly.
