>> C << Crankshaft Angle Sensing Blade/Crankshaft Camshaft Drive Sprocket Installation
WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
- Degrease and clean the crankshaft angle sensing blade and crankshaft camshaft drive sprocket.
- Degrease and clean the crankshaft camshaft drive sprocket installation side of the crankshaft.

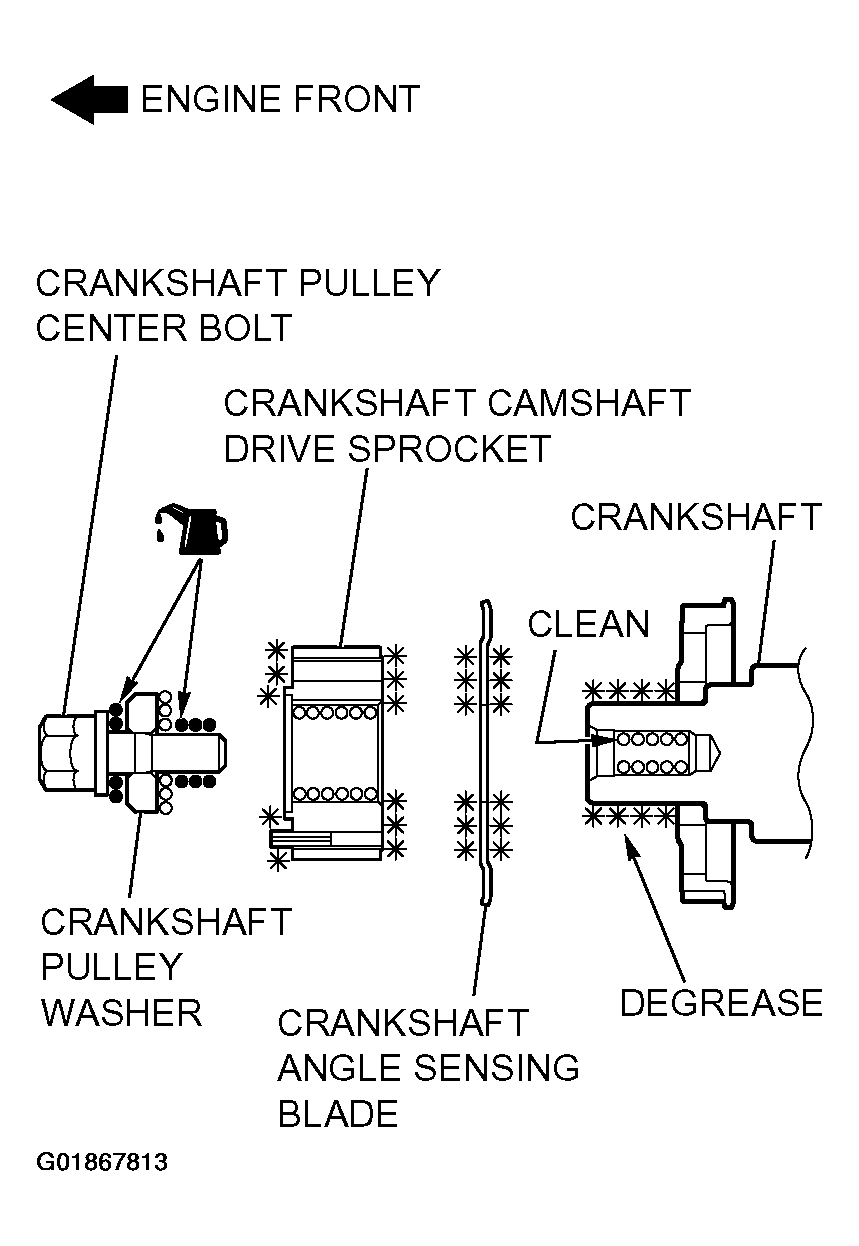

- Install the crankshaft angle sensing blade and crankshaft camshaft drive sprocket in the direction shown.
- Clean the screw hole of the crank shaft.
- Place the larger chamfer side of the crank shaft pulley washer in the direction shown and then assemble on the crankshaft pulley center bolt.
- Apply some engine oil to the crankshaft pulley center bolt bearing surface and screw.
- Hold the crankshaft camshaft drive sprocket with special tools MB991367 and MD991385 in the same manner as removal.
- Tighten the crankshaft pulley center bolts to the specified torque.
- Tightening torque: 162 +/- 5 N.m (120 +/- 3 ft-lb)
