<< A >> Balancer Timing Belt/Balancer Timing Belt TENSIONER Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Ensure that the crankshaft balancershaft drive sprocket timing marks and balancershaft sprocket timing marks are aligned.
Install the balancer timing belt on the crankshaft balancershaft drive sprocket and balancershaft sprocket. There should be no slack on the tension side.

Fig 1: Aligning Timing Marks
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

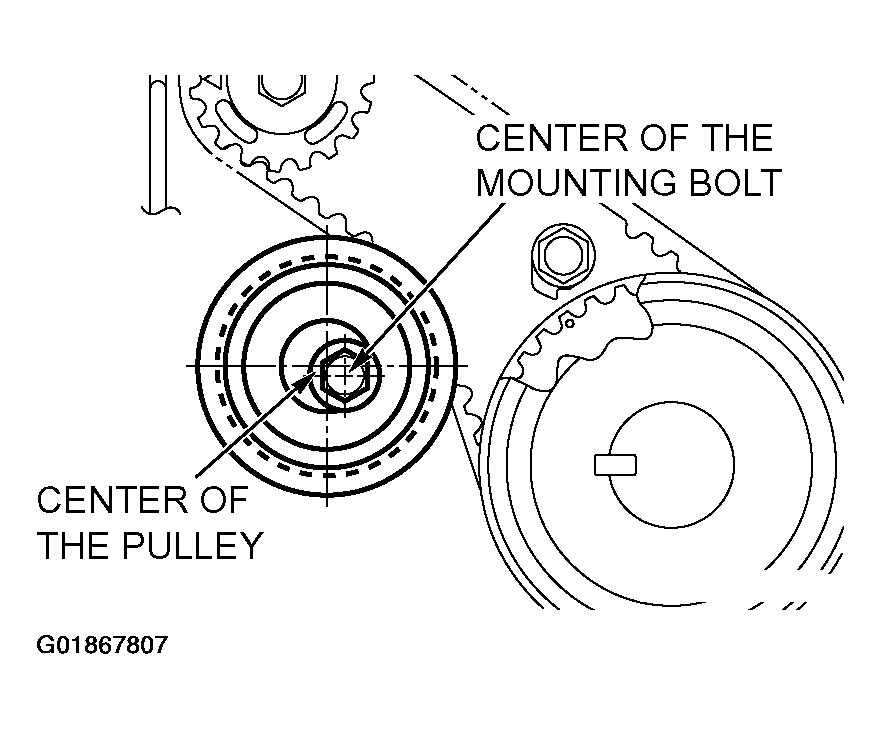

Assemble and temporarily fix the center of the pulley of the balancer timing belt tensioner so that it is at the top left from the center of the assembling bolt, and the pulley flange is at the front-side of the engine.

Fig 2: Assembling & Temporarily Fixing Center Of Pulley Of Balancer Timing Belt Tensioner
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Adjust the balancer timing belt tension.
