<< A >> Engine Oil Pan Removal

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Perform this slowly to avoid deformation of the engine oil pan flange.
  1. Remove the engine oil pan mounting bolts.
  2. Remove the engine oil pan using special tool MD998727.

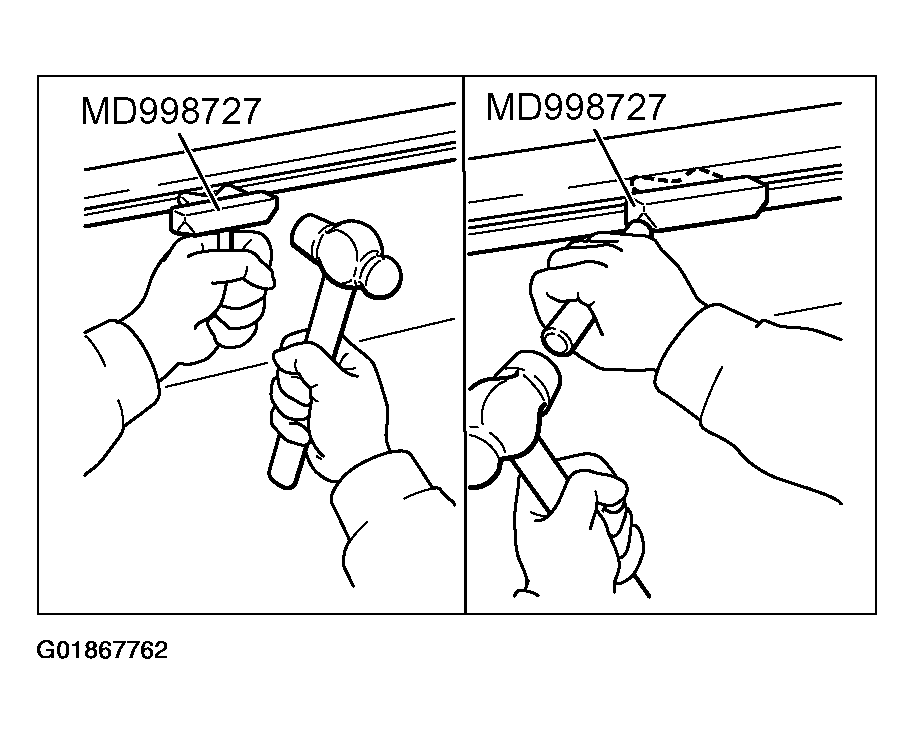

    Fig 1: Removing Engine Oil Pan Using Special Tool MD998727
    G01867762Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
