<< D >> Cylinder Head Bolts Removal

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

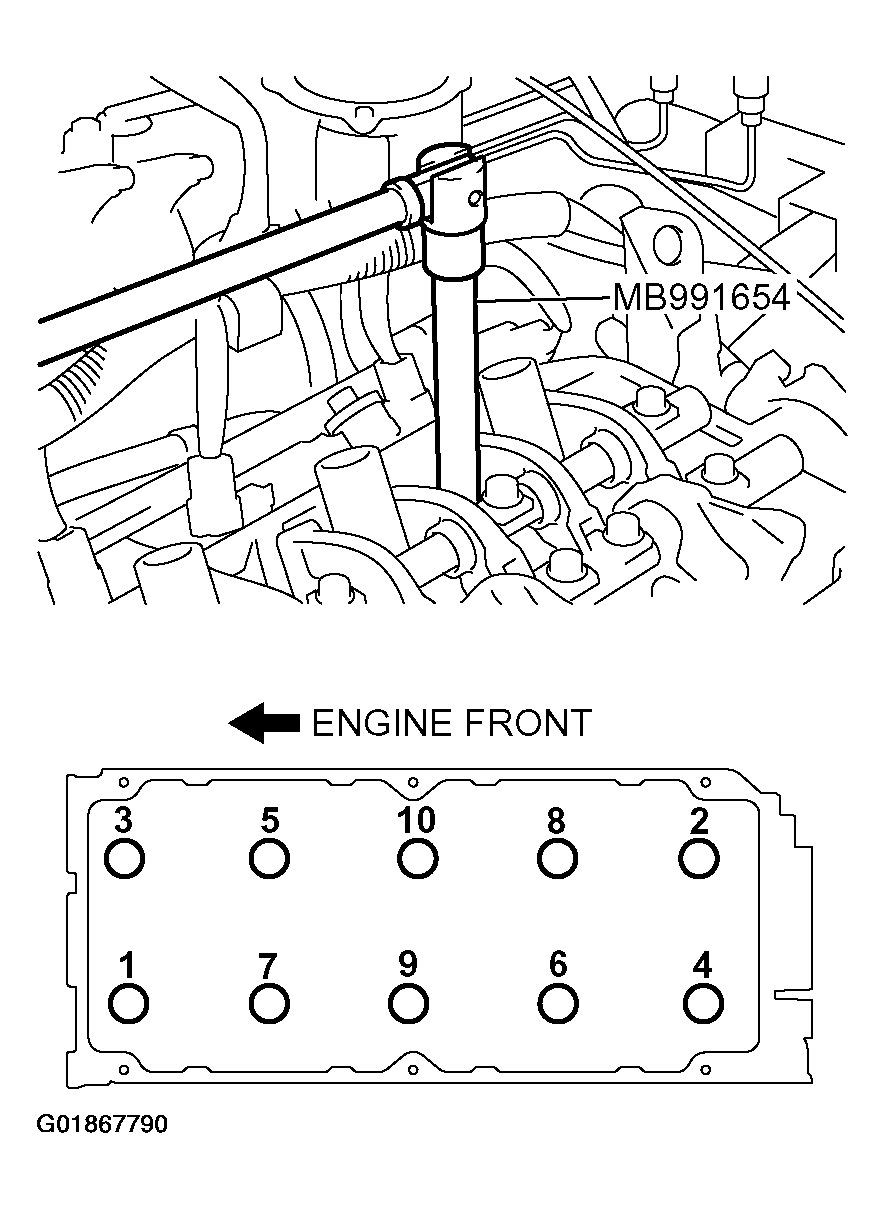

Using special tool MB991654, loosen the cylinder head bolts in two or three steps in the order of the numbers shown in the illustration.

Fig 1: Removing Cylinder Head Bolts
G01867790Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
